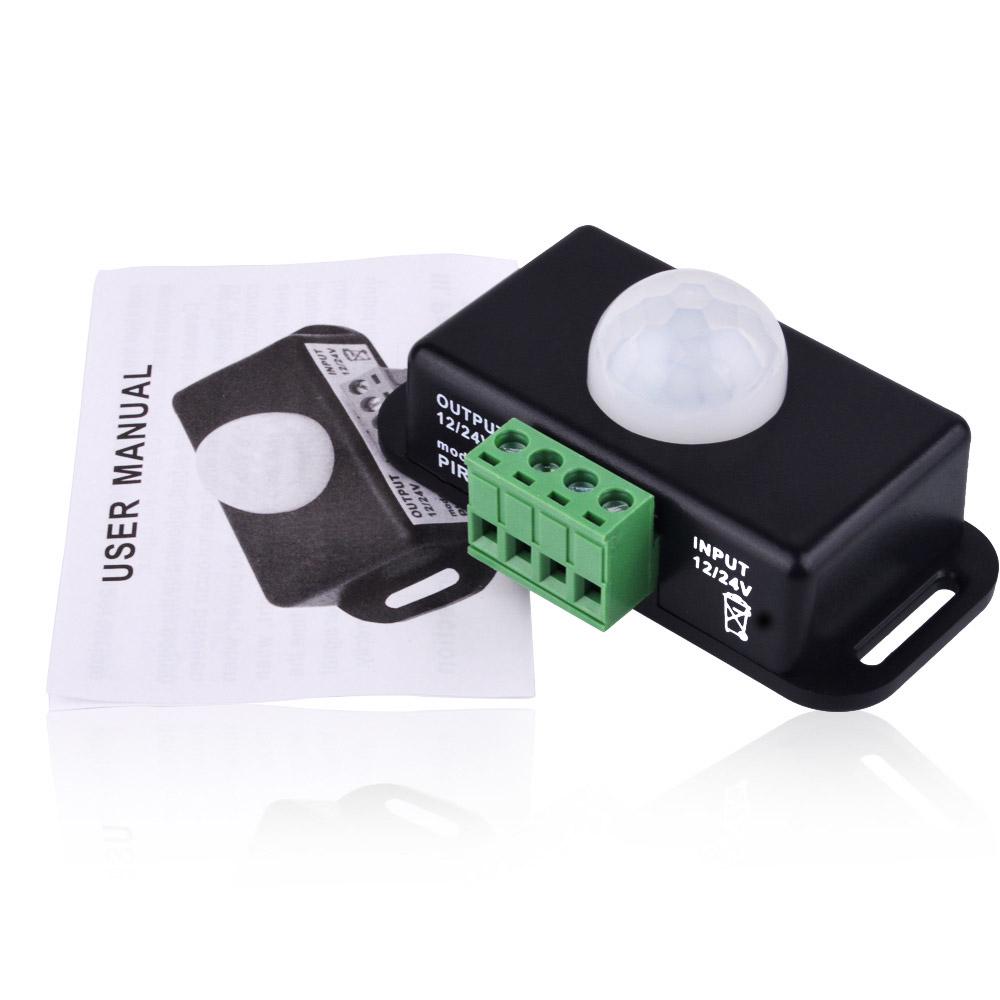

Type: PIR Switch
Material: plastic+metal
Size: approx. 76x45x35mm(L*W*H)
Color: black, as picture shows
Induction distance: 5 ~ 8 M
Induction angle: 120 degrees
Working temperature: -20-60 ℃
Input: 12-24V
Material: plastic+metal
Size: approx. 76x45x35mm(L*W*H)
Color: black, as picture shows
Induction distance: 5 ~ 8 M
Induction angle: 120 degrees
Working temperature: -20-60 ℃
Input: 12-24V
Output current: 8A
Static power consumption: <1W
Output power: 12V: <96W, 24V: <192 W
Delay Time: 60-120 ms
Note:
1.Please allow 0.5-1cm errors due to manual measurement
2.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same
Features:
Easy to install and simple to use.
Adjust the light soft and stable, no flickering.
Mainly use to control LED light lamps and LED Strip.
You can conveniently to let the light auto on/off. The switch can detect human body's infrared, and use infrared to control the load.
Users according to actual needs, the human body sensors installed in the appropriate environment.
Applications: Incandescent lamp, energy-saving lamps, LED lamp, fluorescent lamp and other kinds of loads.
Package included:
1 x PIR motion sensor switch
