Compliant with JEM-1357 static protective relays for three-phase induction motors.
Protective elements can be freely combined using the changeover switch: overload, phase loss, and phase reversal (1E-3E).
Operation element LEDs make fault detection easy.
A wide range of current settings (1-160A) and time settings (1-40s) are possible with a single unit.
Phase reversal detection is voltage-based, preventing reverse rotation without starting the motor.
Cannot be used with circuits with distorted current waveforms, inverter circuits, or capacitor loads.
For details, see "Correct Use" on the data sheet.

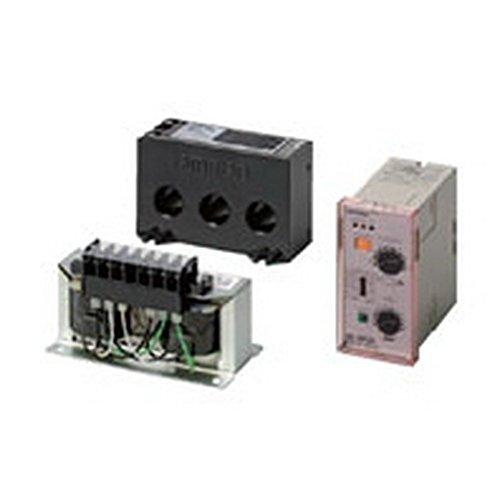

A static motor relay with DIN (48 x 96) size and optional protective elements (1E-3E).
Series: SE
Features: Motor Relay
Appearance: Plug-in type
Control Power Supply Voltage: 200/220/240V AC
Reset Method: Manual
Motor Circuit Rated Voltage: 500V AC or less (three-phase) [Set-3□ Current Converter Primary Voltage]
