Feature:

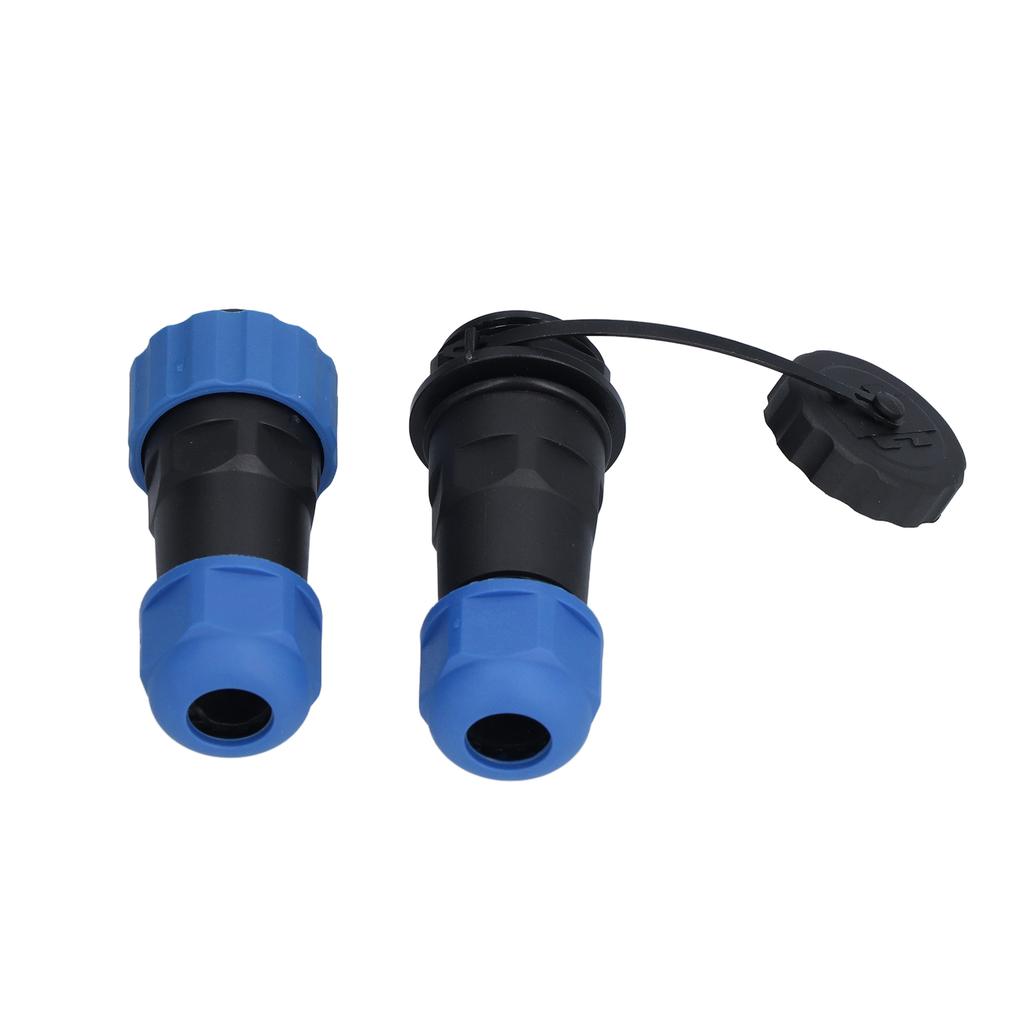

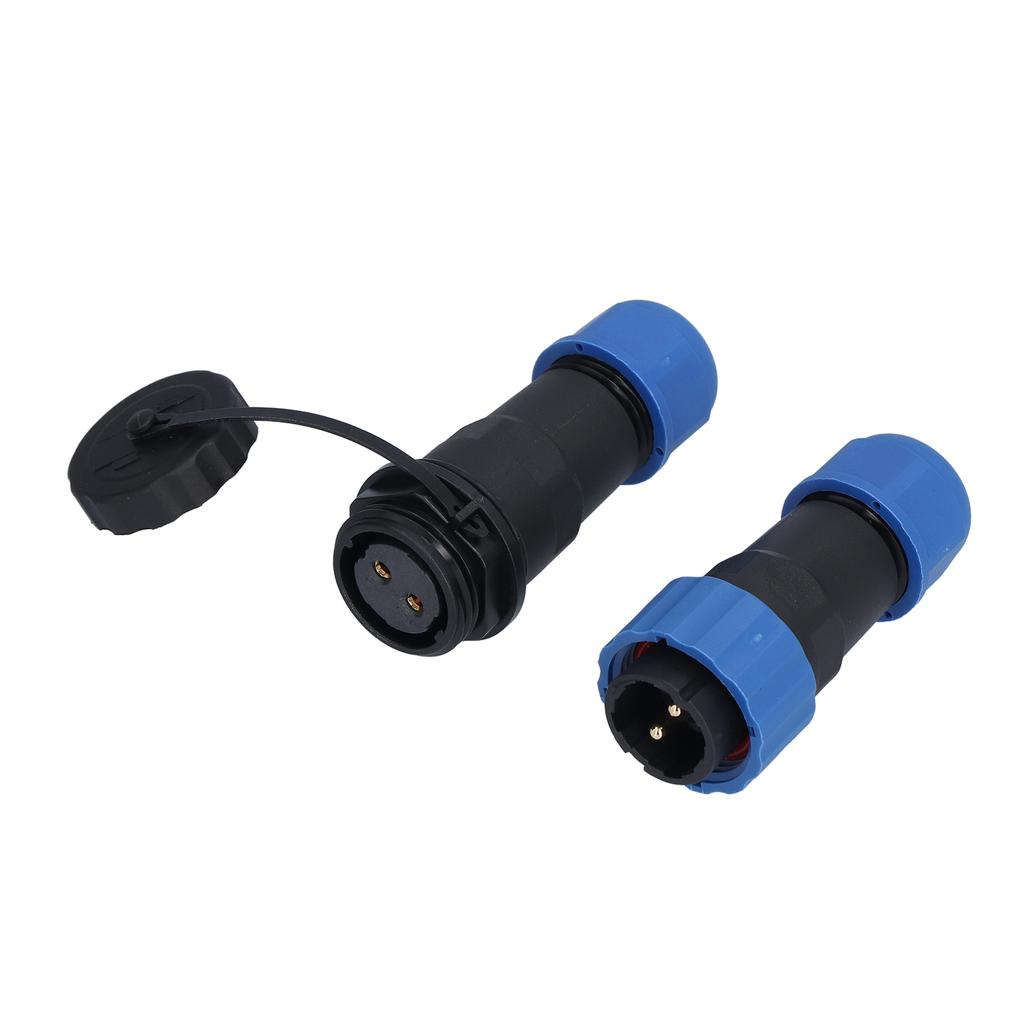

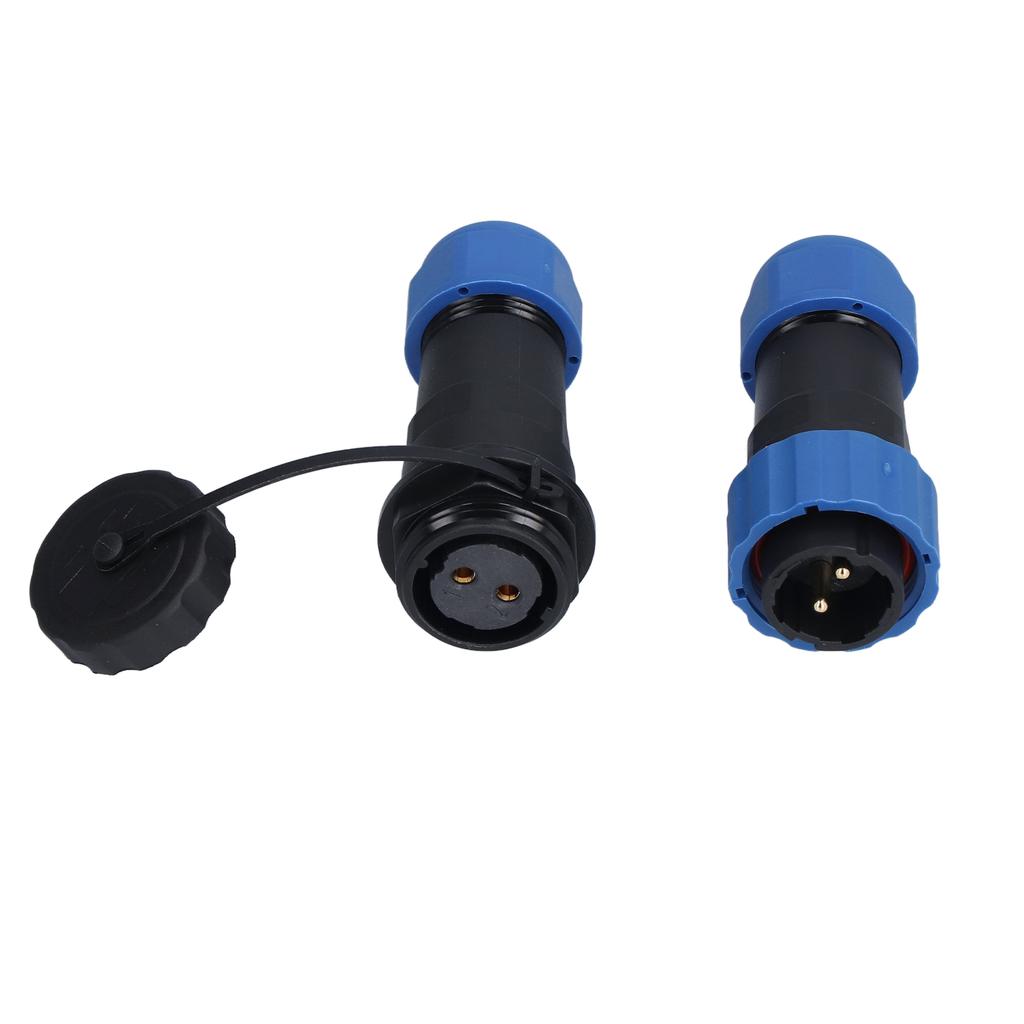

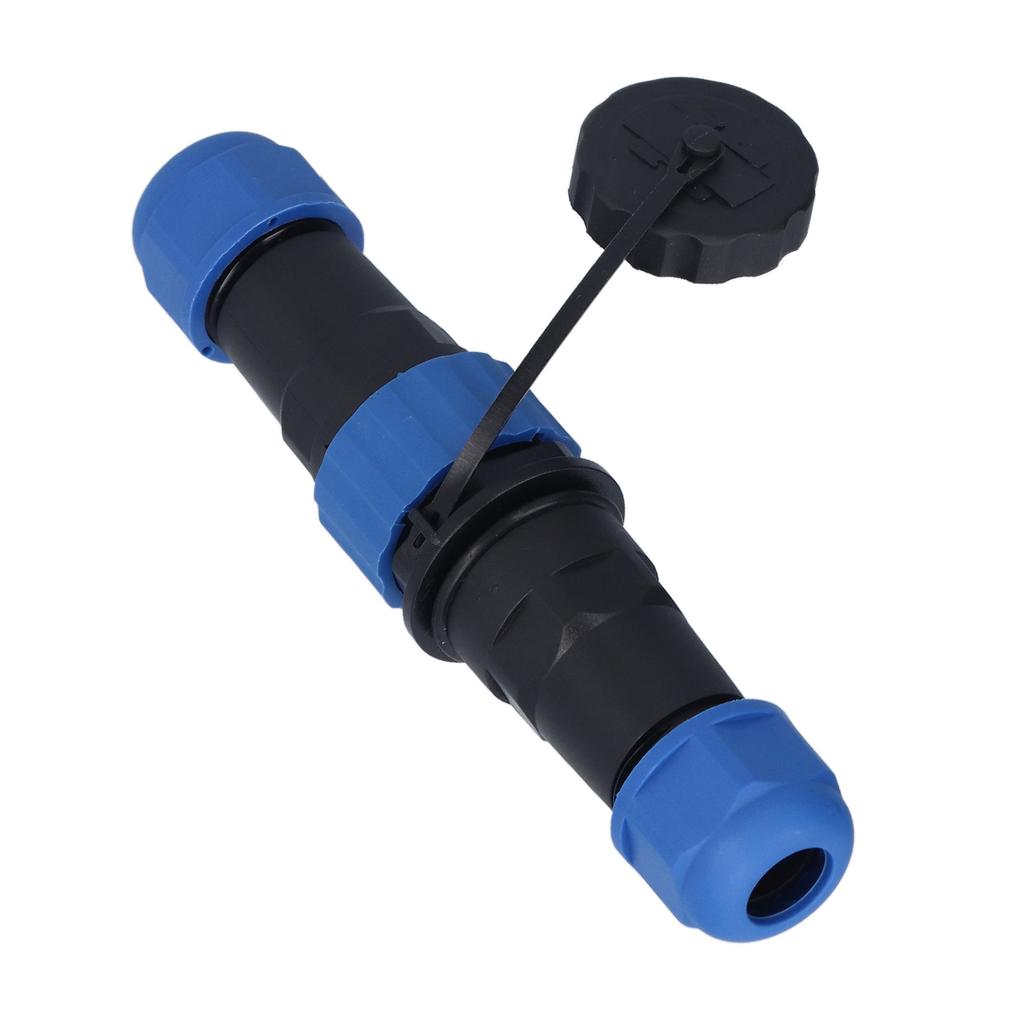

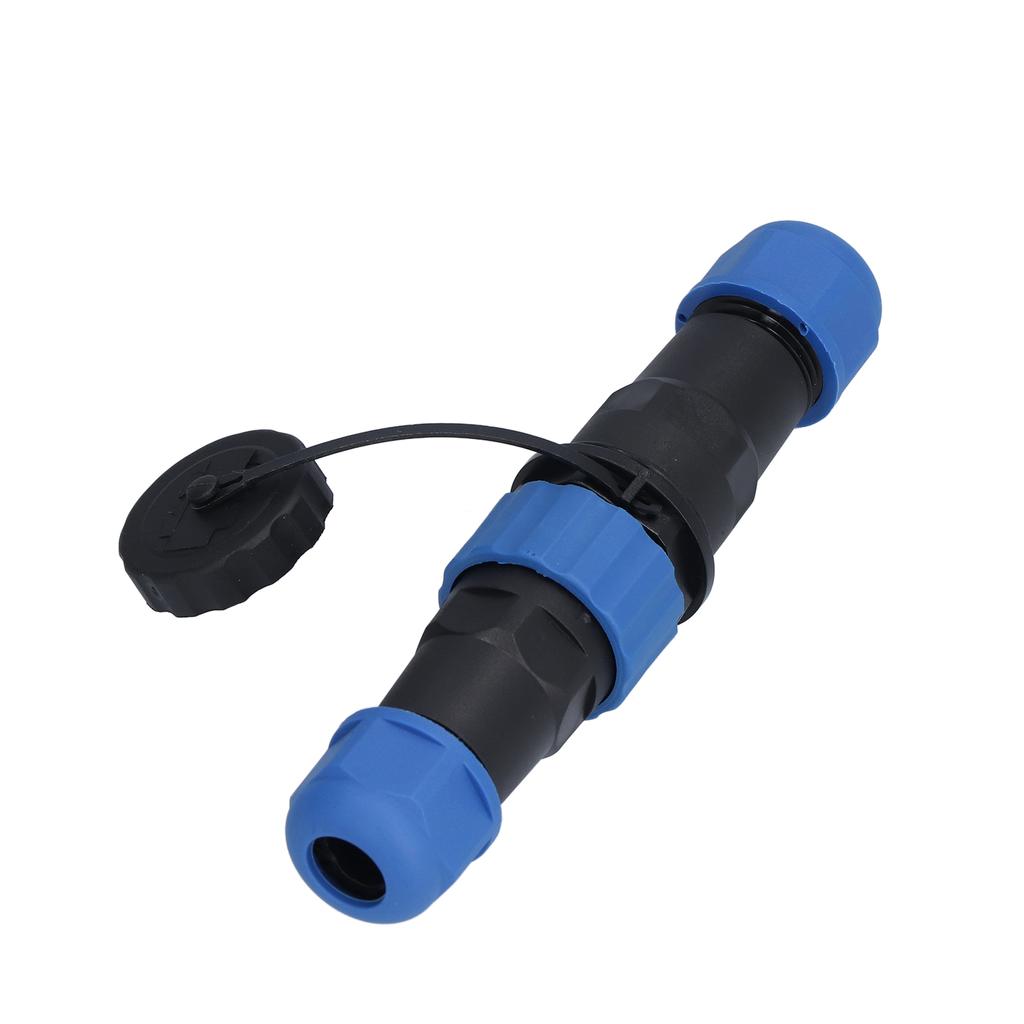

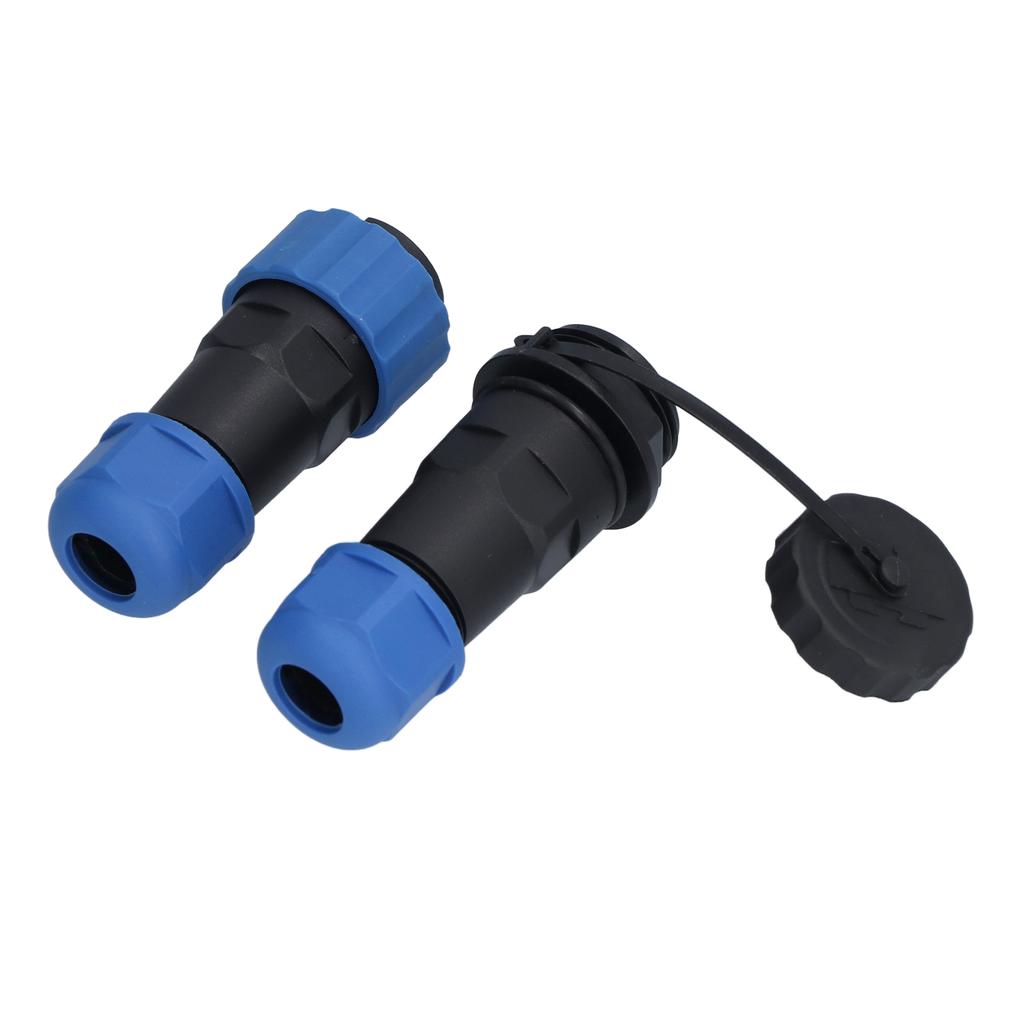

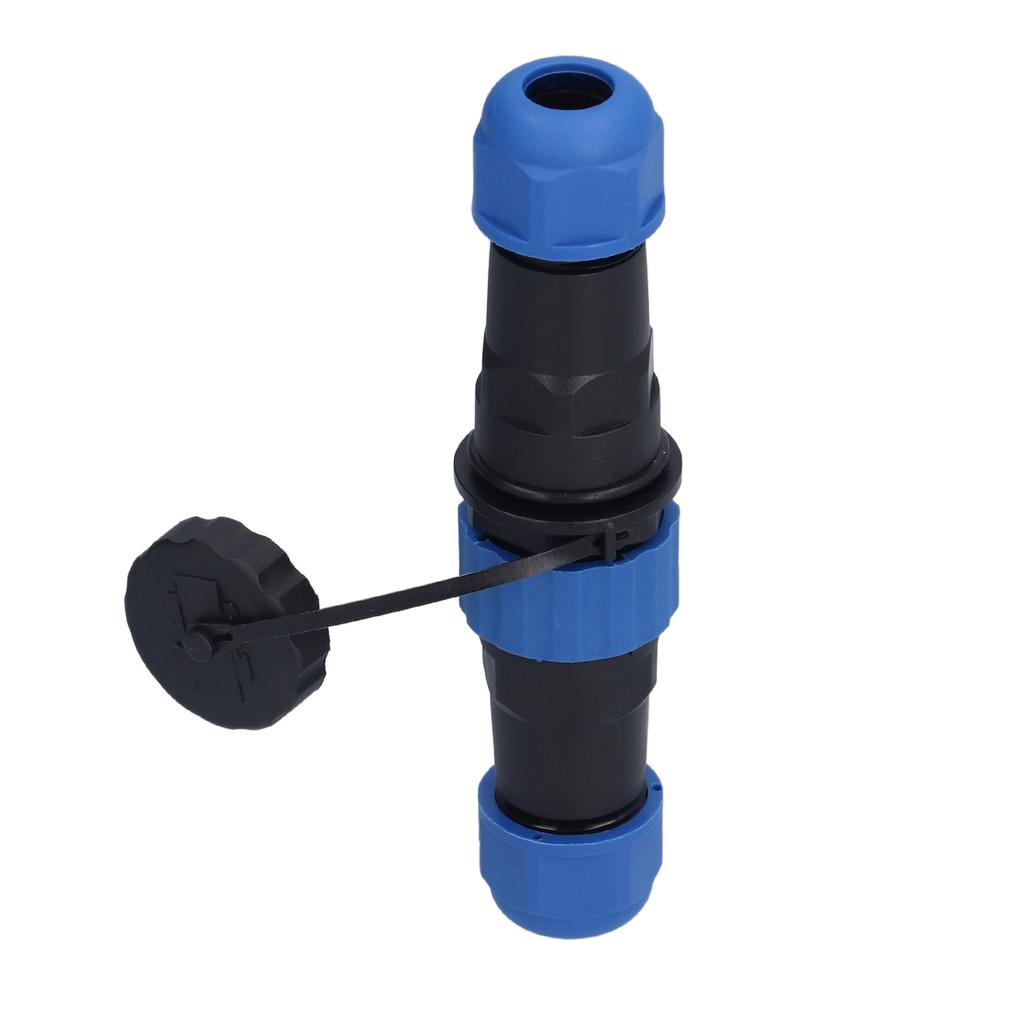

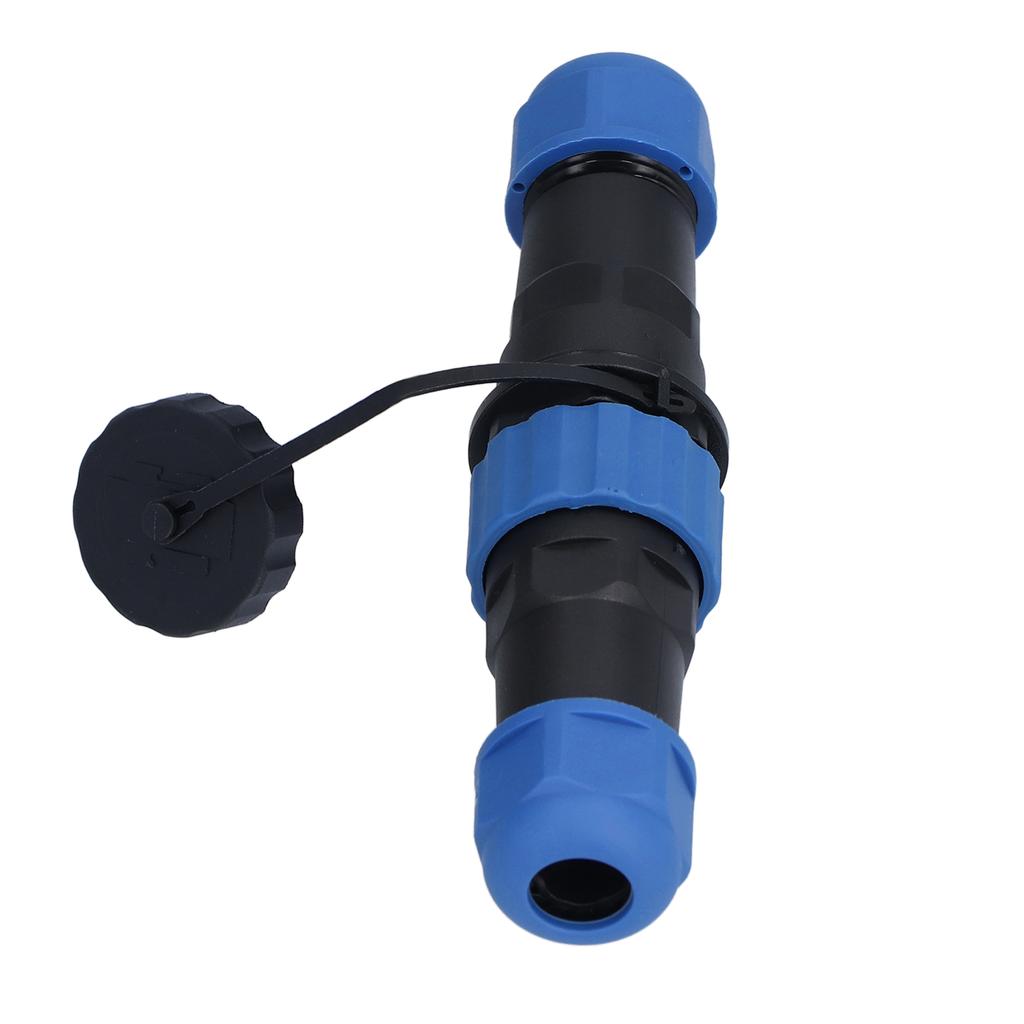

1. IP68 Waterproof Grade: SP20 butt type aviation connector with IP68 waterproof grade and M20x1.5 thread specification
2. Solid Pins: Solid pins possess plug resistance, gold plated copper can anti oxidation, bring long service life
3. PA66 And PA6 Shell: The waterproof aviation connector shell is made of PA66 and PA6 materials, which has good corrosion resistance and flexibility, and will not cause the safety hazard of cracking due to low temperature
4. Firmer Connection: Adopt an electric soldering iron to connect the conductive wires can ensure a firmer connection
5. Widely Used In Equipment: Can be widely used in communication equipment, instrumentation, computers, program controlled machines, alarms, etc. and bridge electronic equipment
Specification:
Item Type: Aviation Plug Socket
Material: PA66, PA6, PPS, silica gel, copper
Uses: Widely used in communication equipment, instrumentation, computers, program controlled machines, alarms, etc. and bridge electronic equipment
Shell Material: PA66, PA6
Insulator: Thermoplastic PPS (high temperature resistant 220 celsius )
Contact Material: Copper (gold plated)
Connection Method: Soldering (if solder paste is used, must be cleaned)
Connection Method: Threaded connection
Head Size: Approx. 20mm 0.8in
Thread Specification: M20x1.5mm
Insulation Resistance: 2000M Ohm
Withstand Voltage: 1500V
Applicable Cables for Shell: Dia 8~11.5mm2
Mating Times: More than 500 times
Operating Temperature Range: 25 celsius to 85 celsius
Tightness: Comply with IP68.
Model
Copper Needle Diameter
Copper Needle Applicable Wire Gauge(mm2AWG)
Rated Current
Working Voltage
2 Pin
2.8mm 0.11in
less than 412
25A
380V
3 Pin
2.8mm 0.11in
less than 412
25A
380V
4 Pin
2.8mm 0.11in
less than 412
25A
380V
5 Pin
2.8mm 0.11in
less than 412
25A
380V
6 Pin
1.8mm 0.07in
less than 1.514
10A
380V
7 Pin
1.8mm 0.07in
less than 1.514
10A
380V
Package List:
1 x Male Connector1 x Female Connector
Note:
Use rosin for soldering. If solder paste is used for soldering, must be cleaned with related liquids.IP68 Waterproof Grade: SP20 butt type aviation connector with IP68 waterproof grade and M20x1.5 thread specification
