Feature:
1. The terminal block is simple to use, open the handle, insert the wire and then press the handle to complete the quick wiring.
2. The strong circlip will not loosen, and can be plugged and unplugged repeatedly, so you don"t have to worry about plugging it wrong.
3. There are male and female tenons on both sides, two or more terminals can be spliced side by side for multiposition wiring.
4. The wiring terminal adopts copper conductor, which has high conductivity, flame retardant and high temperature resistance.
5. Terminals are mainly used for wiring of lamps, motors, power supplies, machinery, and home improvement.
Specification:
Item Type: Wire Connector
Material: PC + Copper
Rated Voltage: 250V
Rated Current: 32A
Wire Diameter: 0.082.5 (4) mm2AWG2812 soft and hard wire
Withstand Voltage: 4kV
Ambient Temperature: 40 celsius ~+105 celsius
Stripping Length: Approx. 1112mm 0.430.47in
Application: Used for lighting, motors, electrical control, power supplies, home appliances, machinery, home improvement, etc..
Package List:

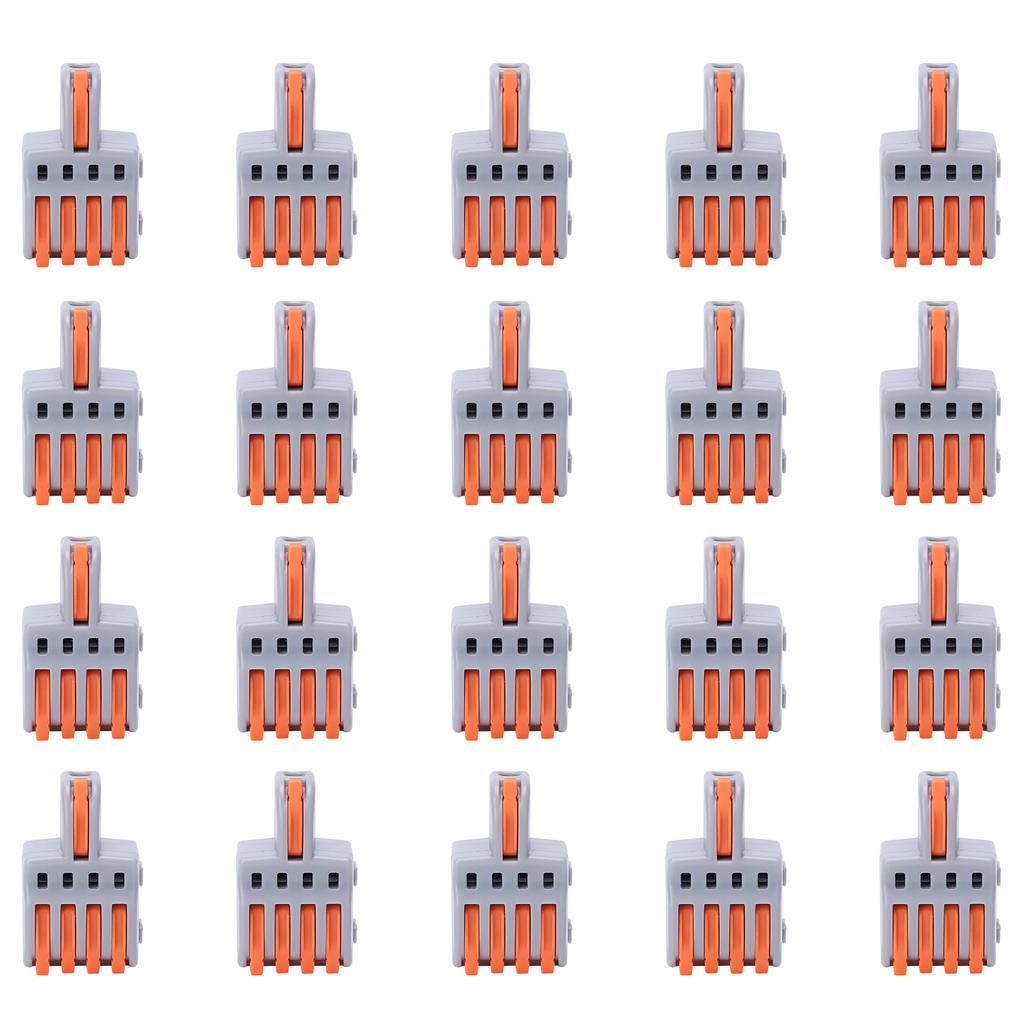

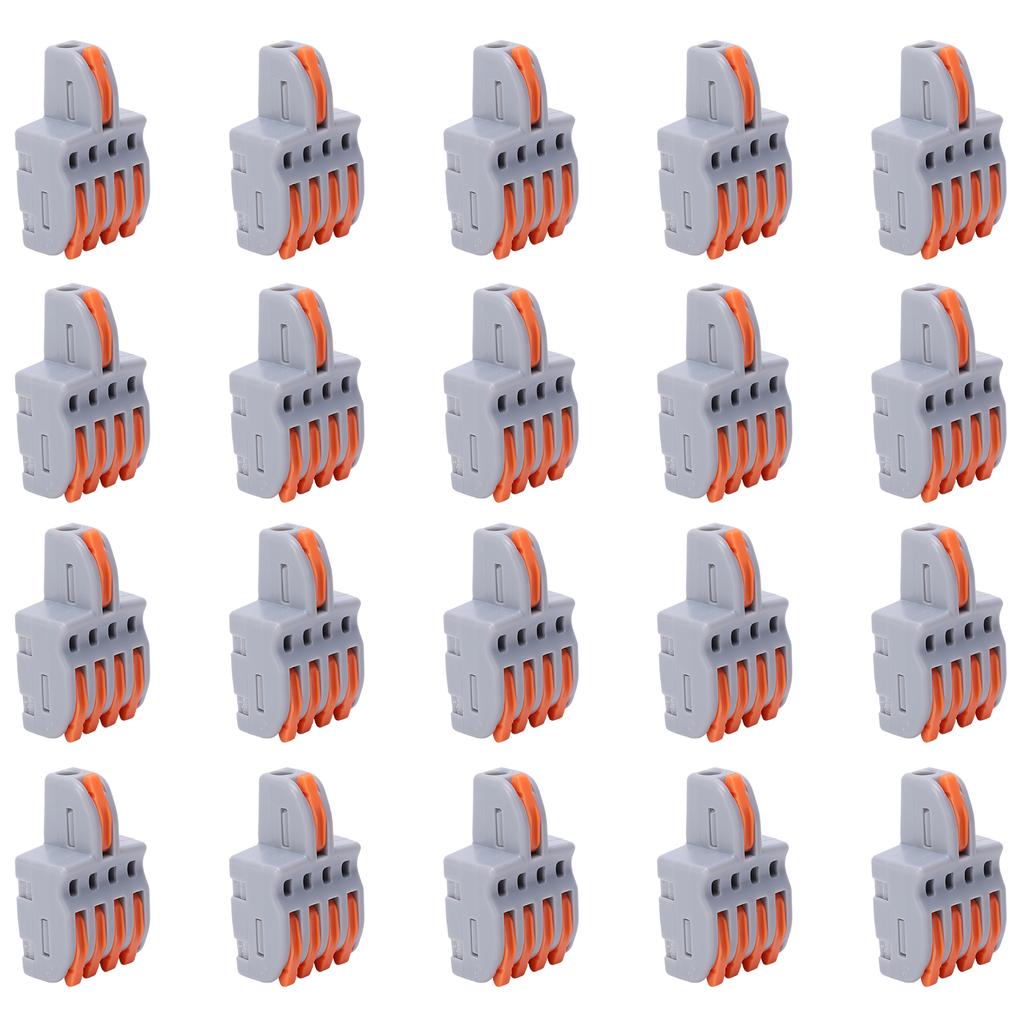

20 x Wire ConnectorThe terminal block is simple to use, open the handle, insert the wire and then press the handle to complete the quick wiring.
The strong circlip will not loosen, and can be plugged and unplugged repeatedly, so you don"t have to worry about plugging it wrong.
There are male and female tenons on both sides, two or more terminals can be spliced side by side for multiposition wiring.
The wiring terminal adopts copper conductor, which has high conductivity, flame retardant and high temperature resistance.
Terminals are mainly used for wiring of lamps, motors, power supplies, machinery, and home improvement.
