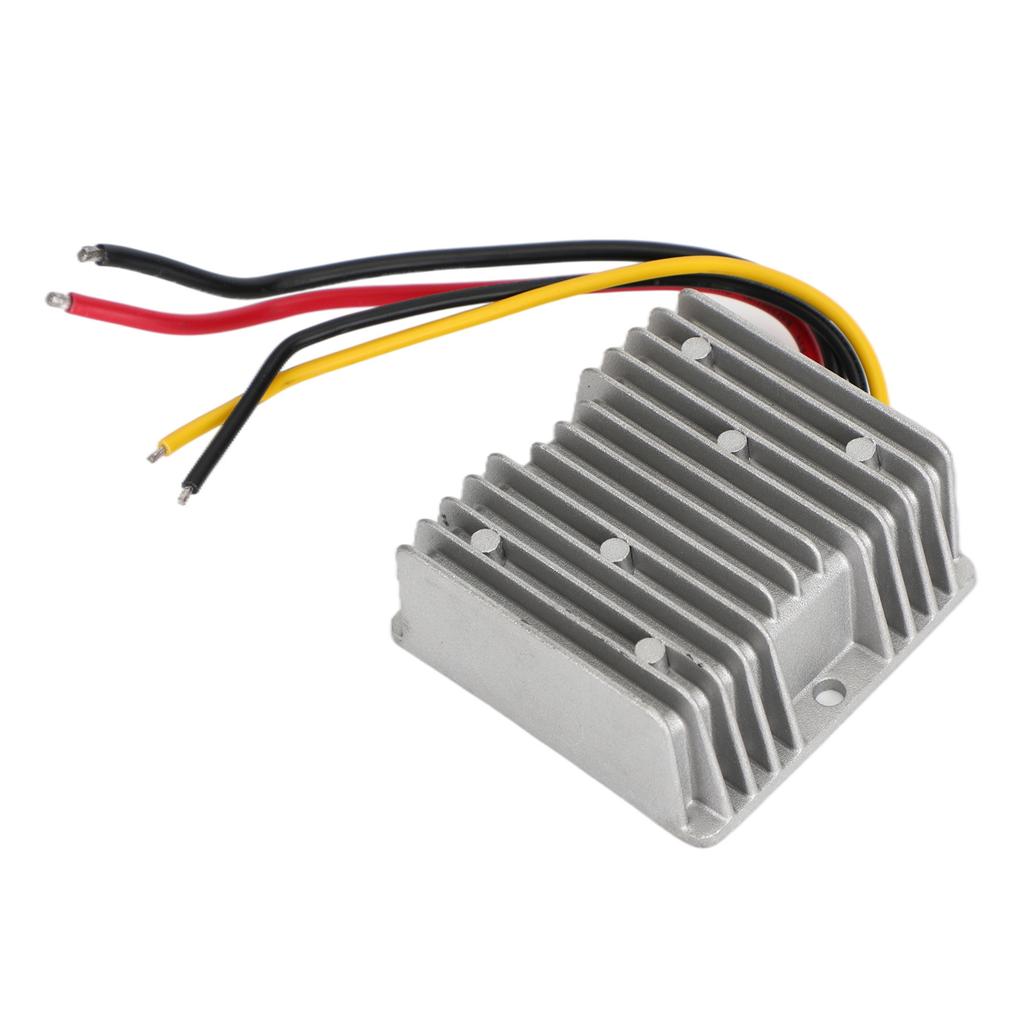

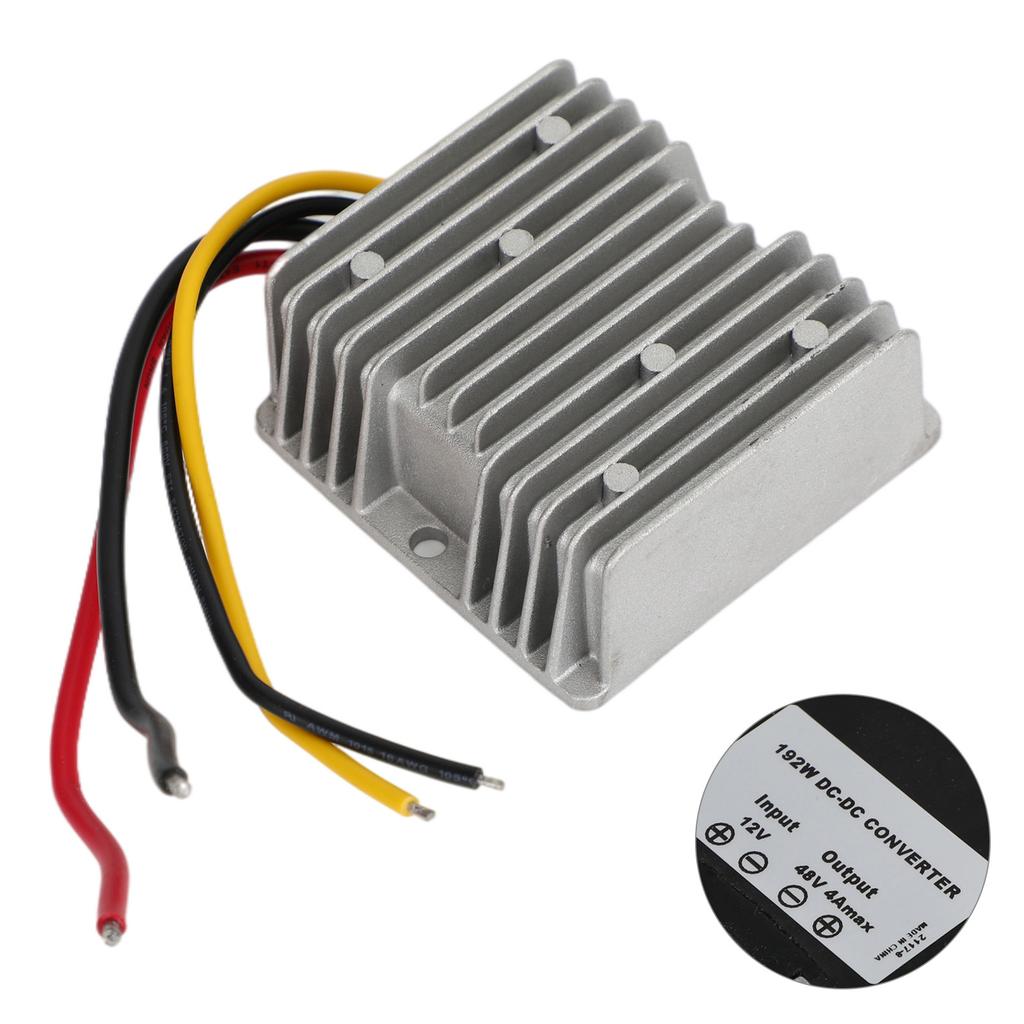

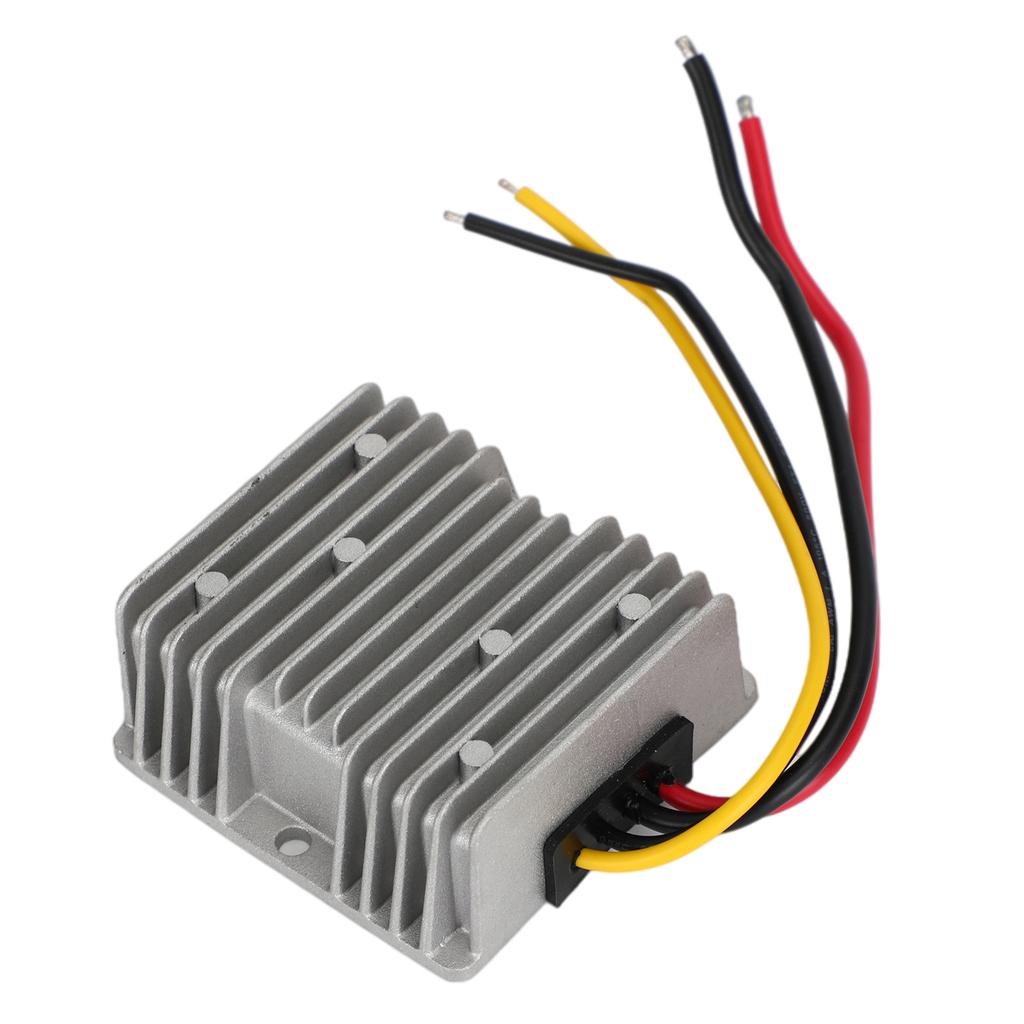

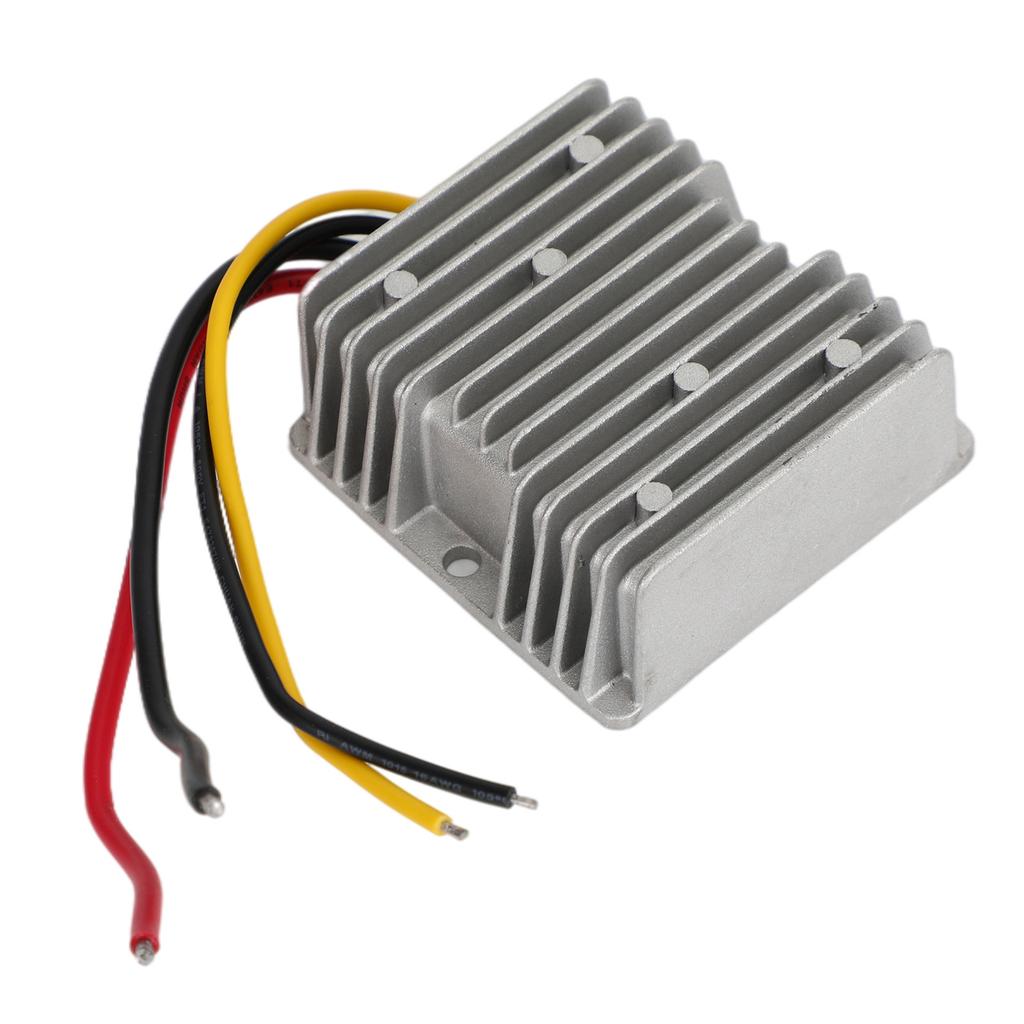

12V to 48V 4A DC-DC Step Up Power Converter Voltage Regulator Module
Feature:
1: Four Smart Production: embeded Smart Chips provide 4 protection-Overcurrent Protection/Overheated Protection/Short Circuit Protection/High Voltage Protection
2: High Conversion Efficiency: Synchronization Rectification Technology-multiple intelligent protection function with high conversion efficiency and stability. The conversion efficiency may reach 95%.
3: Aluminum Shell and Silicone Sealed design : Waterproof,Anti-shock,Anti-humidity and Dust-proof, more durable.
4: Small Size:Wide application for motor,dashcam,solar panel,LED strip lights,LED display,electric fan,camera,light,etc. Easy DC-DC/AC-DC Changing
5: Aluminum Outer Case material, long term stable and reliable.
6: Easy to install.

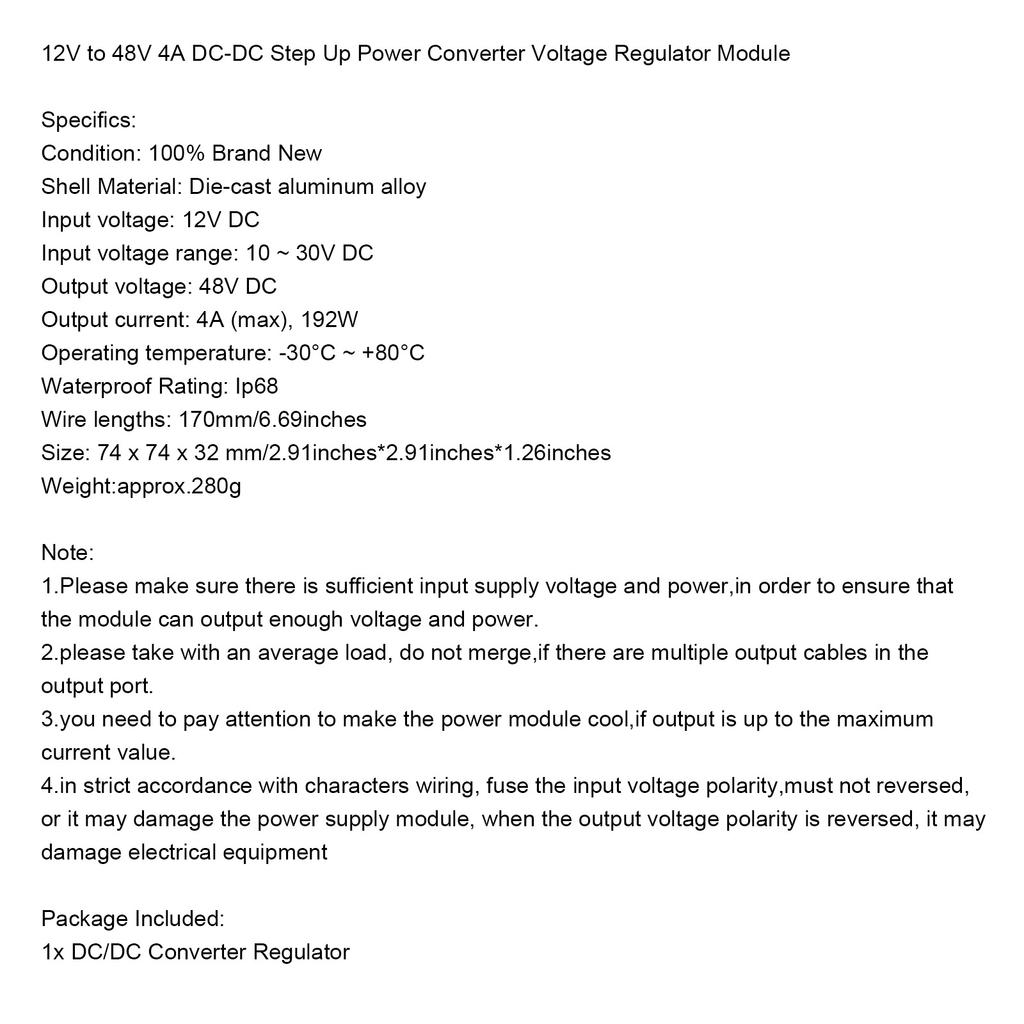

Specifics:
Condition: 100% Brand New
Shell Material: Die-cast aluminum alloy
Input voltage: 12V DC
Input voltage range: 10 ~ 30V DC
Output voltage: 48V DC
Output current: 4A (max), 192W
Operating temperature: -30°C ~ +80°C
Waterproof Rating: Ip68
Wire lengths: 170mm/6.69inches

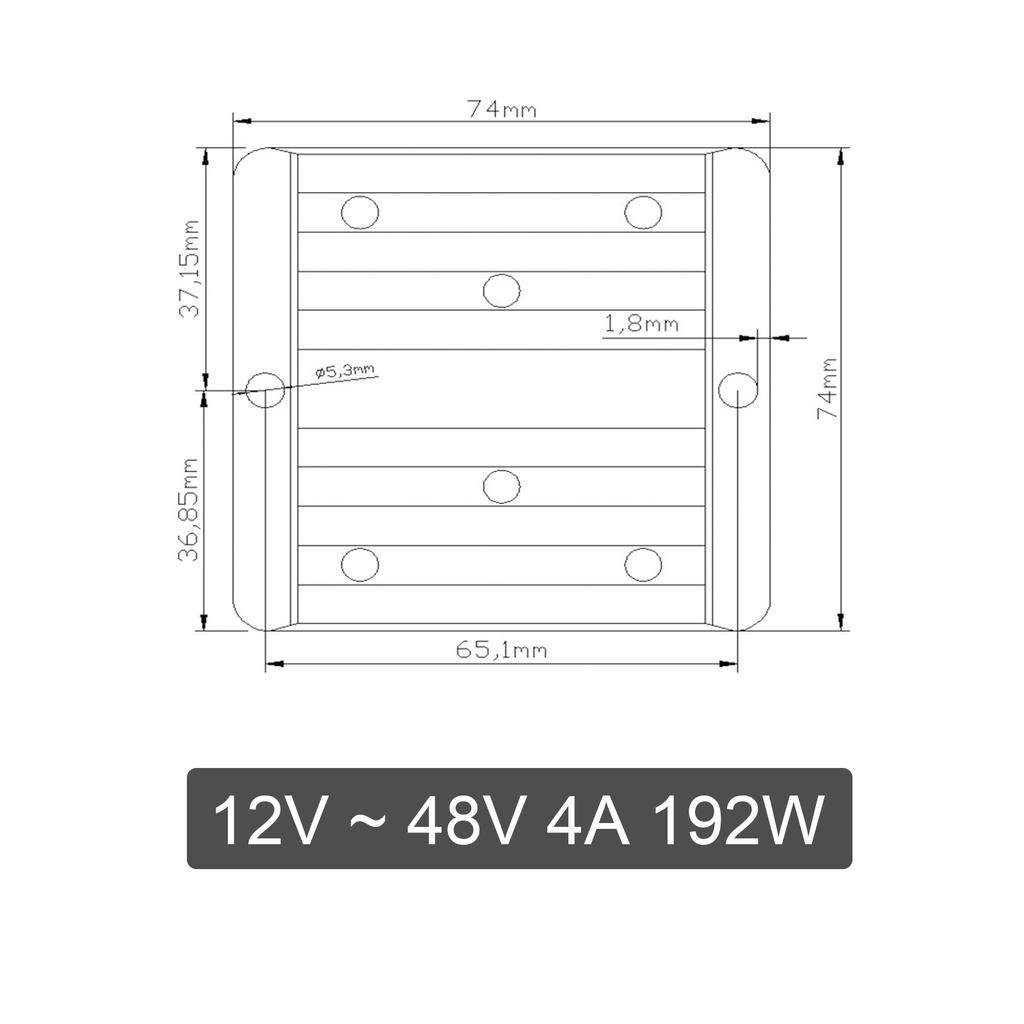

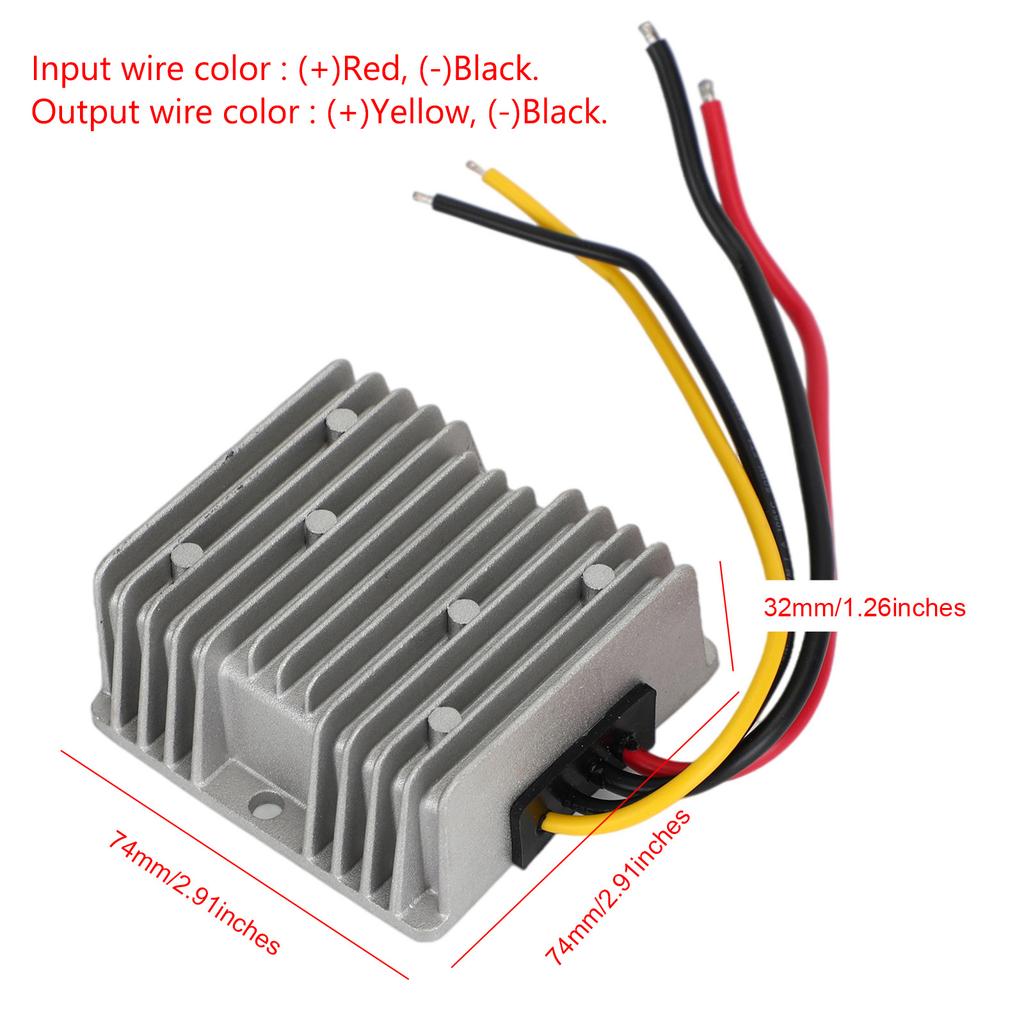

Size: 74 x 74 x 32 mm/2.91inches*2.91inches*1.26inches
Weight:approx.280g

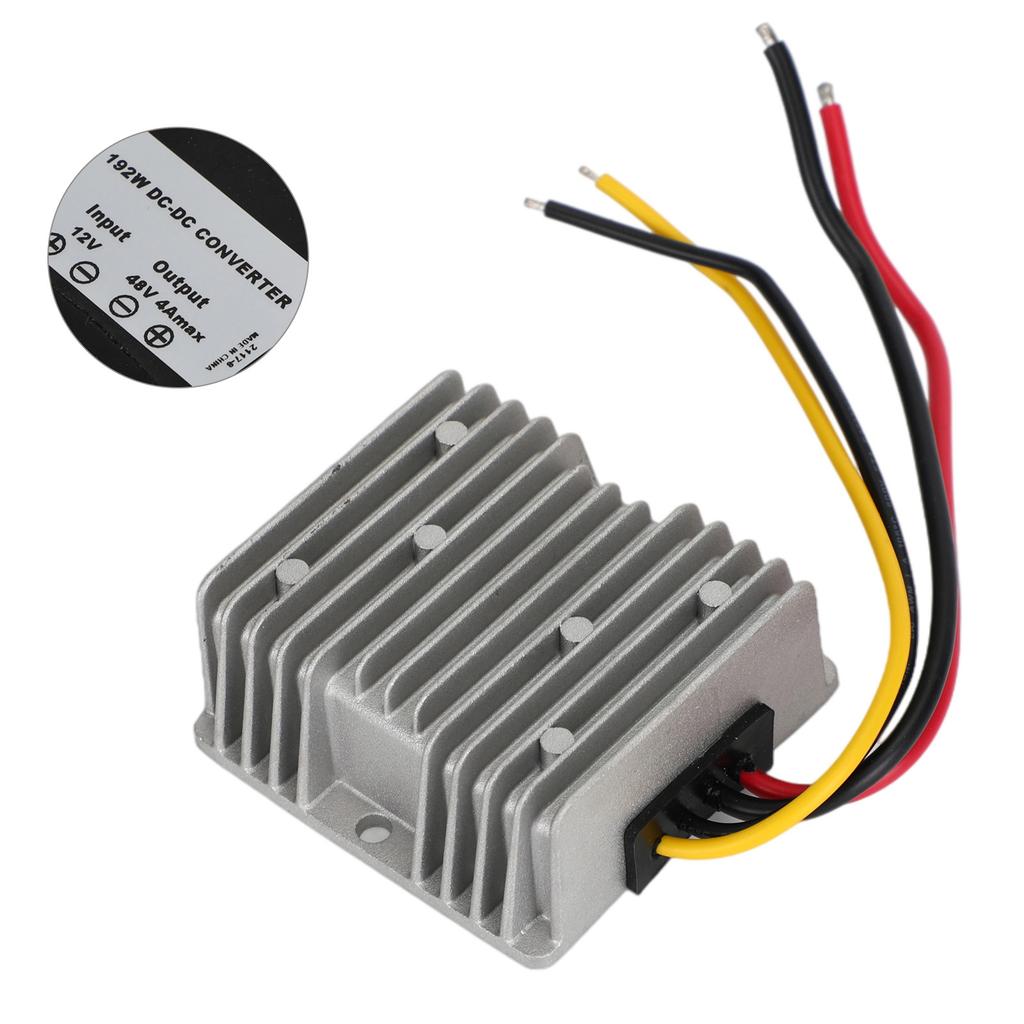

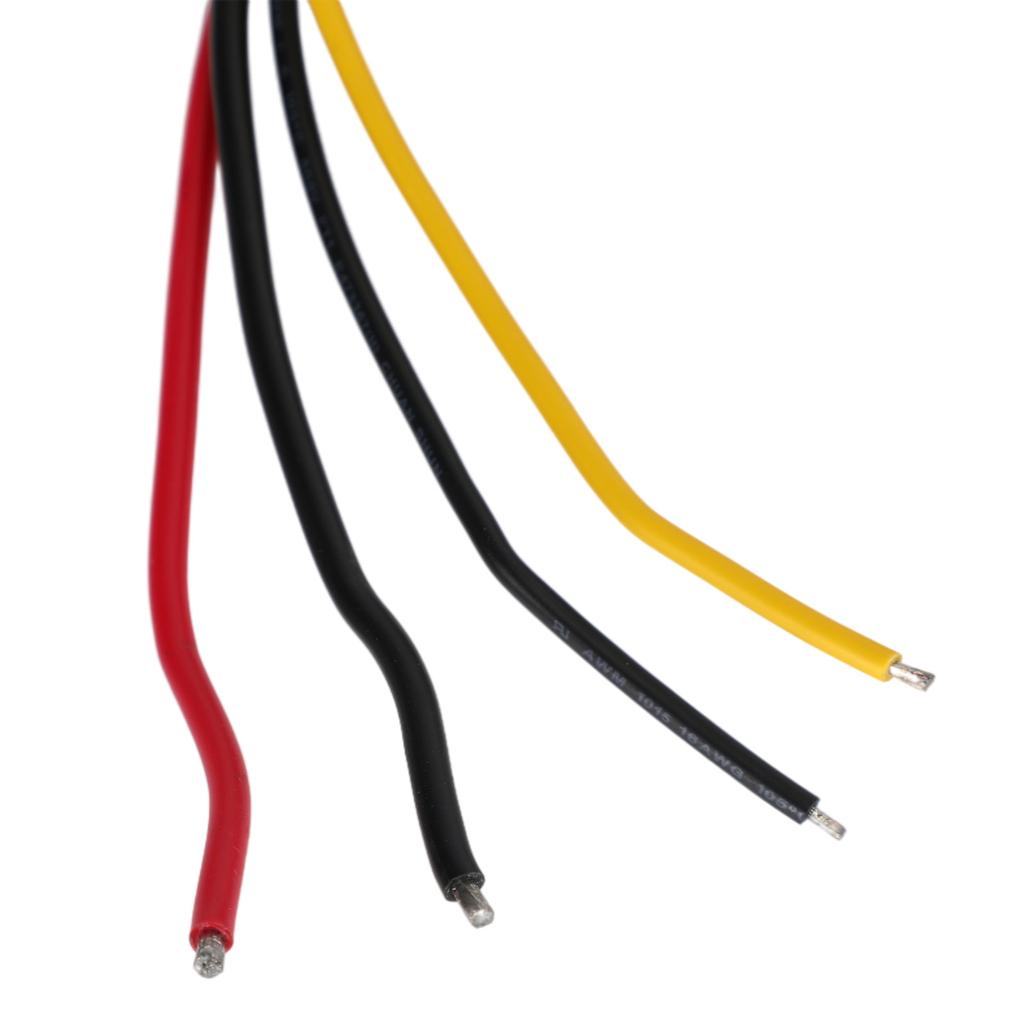

Input wire color : (+)Red, (-)Black.
Output wire color : (+)Yellow, (-)Black.
Note:
1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2.Please take with an average load, do not merge,if there are multiple output cables in the output port.
3.You need to pay attention to make the power module cool,if output is up to the maximum current value.
4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
Package Included:
1x DC/DC Converter Regulator
