Description:
The diagnostic instrument is used for car fault diagnosis, fault code clearing, viewing freeze frame data, reading I/M status and vehicle information.
It is easy to use and install the diagnostic scanner that can be plugged into the OBD port to detect vehicle information.
It is made of plastic and electronic component material, which is lightweight and portable.
The length of the product is 9.55 cm, the width is 7.21 cm, the height is 2.22 cm.
It is suitable for car, truck, SUV, ATV, van and so on.

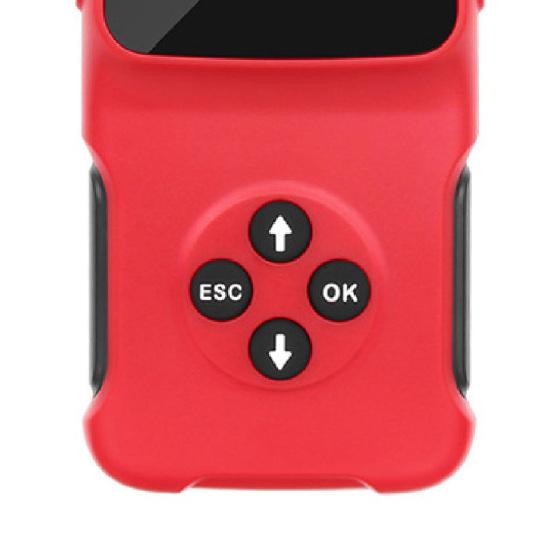

Item Name: Car Diagnostic Scanner
Material: Plastic,Electronic Component
Working Voltage: 9-16V
Working Current: 80mA
Operating Temperature:-30-70 Degrees Celsius
Storage Temperature:-30-80 Degrees Celsius
Features: Convenient, Wide Application, Plug Play
Supported Languages: English, German, French, Dutch, Spanish
Protocol:
SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPM(10.4 Kbaud)
ISO 9141-2 (5 Baud Initialization, 10.4 Kbaud)
ISO 14230-4 KWP (5 Baud Initialization, 10.4 Kbaud)
ISO 14230-4 KWP (Fast Initialization, 10.4 Kbaud)
ISO 14230-4 CAN (11-bit ID, 500 Kbaud)
ISO 14230-4 CAN (29-bit ID, 500 Kbaud)
ISO 14230-4 CAN (11-bit ID, 250 Kbaud)
ISO 14230-4 CAN (29-bit ID, 250 Kbaud)
Size Details:
9.55cm x 7.21cm x 2.22cm(Approx.)
Notes:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
Package Includes:
1 x Car Diagnostic Scanner
1 x User Manual
