NUBTECH High precision 2CH voltmeter function to Probe type PC connection type Logger/Oscilloscope ±10V ±400V [Light version] VM02A-LC

【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

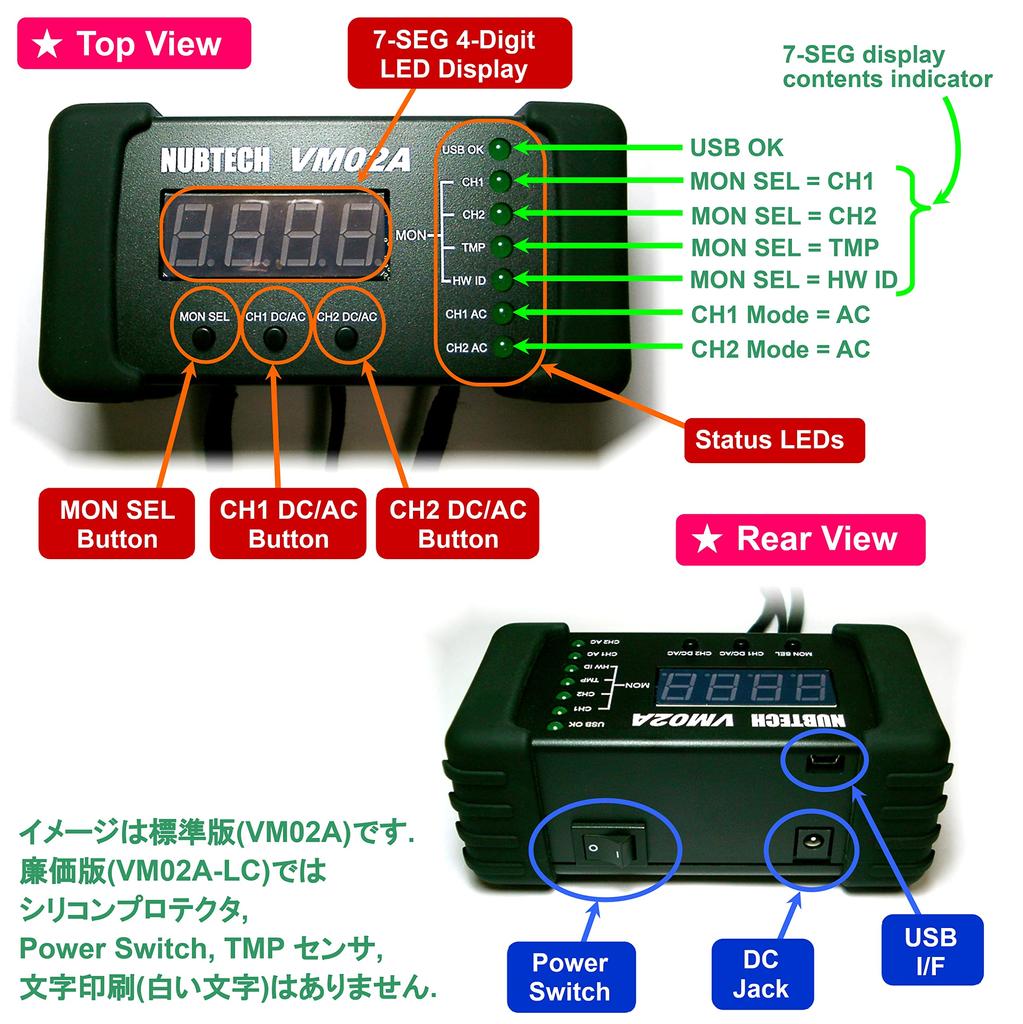

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. Simultaneous measurement of voltage x 2CH is possible. Waveforms can be observed in real time. Stats Info (Max/Min/Avg/SD) can also be displayed in real time. High precision! Voltmeter Voltage logger Voltage measurement Function DC accuracy: ±0.05%rdg.±3dgt. AC accuracy: ±0.3%rdg.±2dgt. Long-term measurement data recording (data logger voltage measurement) and storage possible (CSV) via USB connection. Maximum of 2097152 points (2M samples). Affordable and inexpensive version with reduced equipment! PC applications can be operated with just one mouse (left click only) The use of a special probe reduces the effect on the system being measured. High precision voltage measuring instrument and data logger. Voltage AC measurement is True-RMS. All components of AC, DC, and AC+DC are displayed simultaneously. Comes with oscilloscope function. Simple CAL Tool also included. ●VM02A is a 2-CH high-precision voltmeter that is connected to a PC. ●PC I/F uses USB 2.0 and is isolated from the measurement system ●Uses a special probe, which minimizes the effects even on systems under test that are sensitive to noise and capacitance. ●By using the PC app, in addition to displaying voltage with high precision, you can also display and record waveforms like a logger, and save the data in a file (CSV File). ●In addition to the normal time axis display, X-Y display unique to 2-CH is also possible. ●In addition, an oscilloscope function app is available as a bonus feature (bandwidth is narrow) ●AC measurements are performed using True-RMS, and each of the AC component, DC component, and AC+DC component can be displayed simultaneously. *Pro-Mode can be used after 30 minutes or more have passed after the power is turned on. Pro-Mode slightly improves resolution (it does not improve accuracy). *CH1 and CH2 GND is common (not insulated). [DC Mode resolution] 4 digits (5 digits when Pro-Mode is enabled) [AC Mode resolution] 3.5 digits [DC Range] ±10V, ±40V, ±100V, ±400V [AC Range] ±10Vpk, ±40Vpk, ±100Vpk, ±400Vpk
