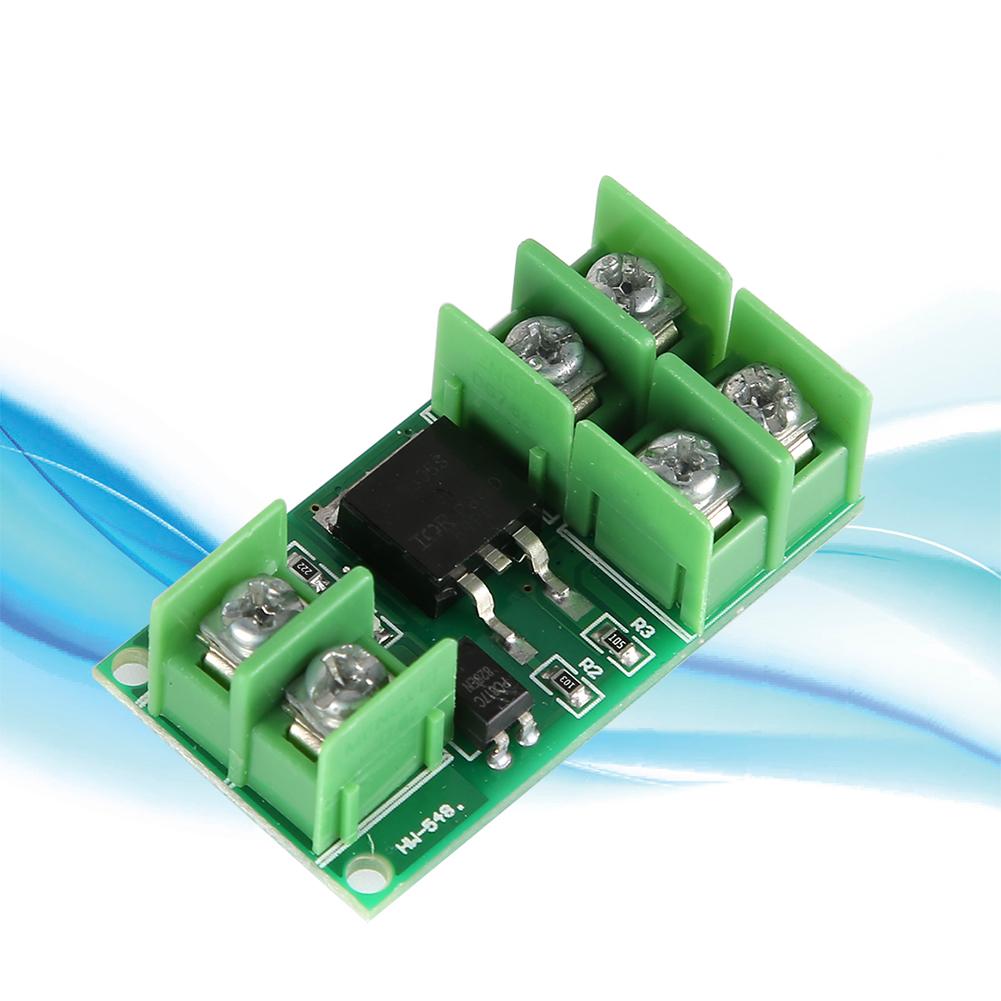

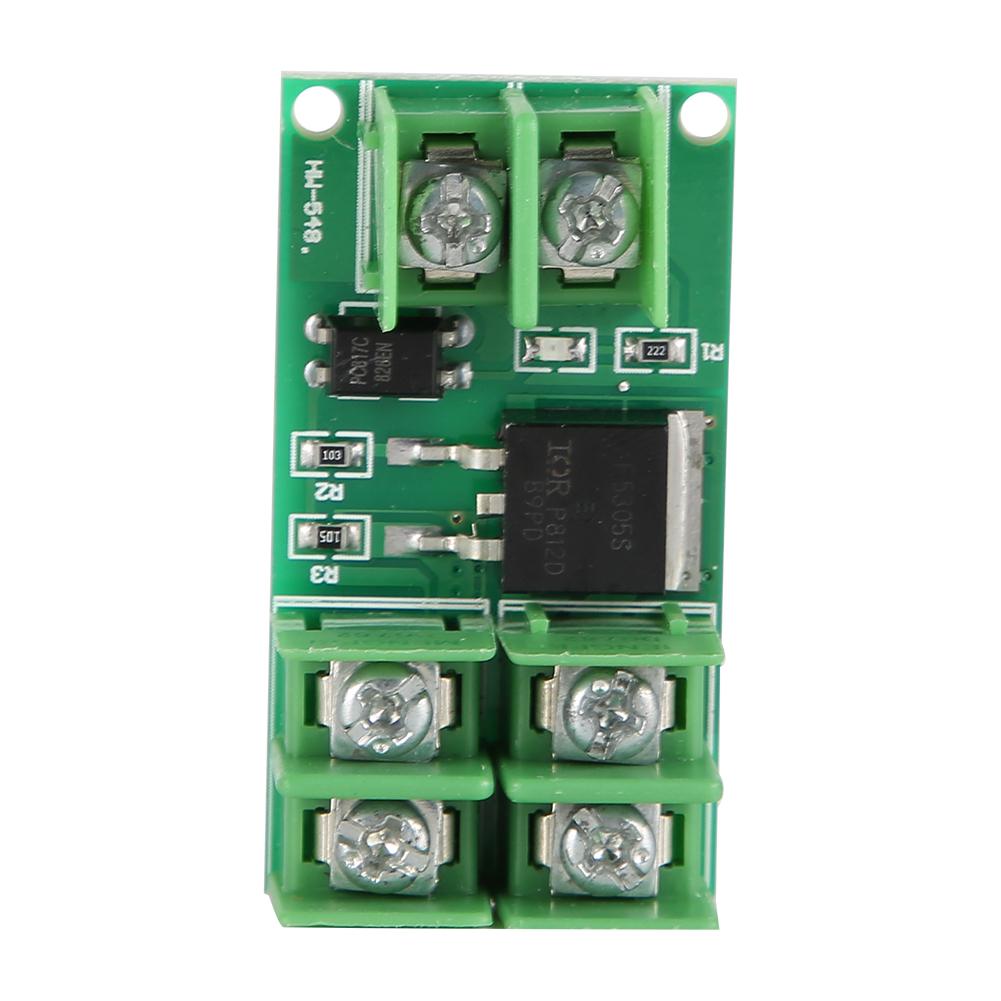

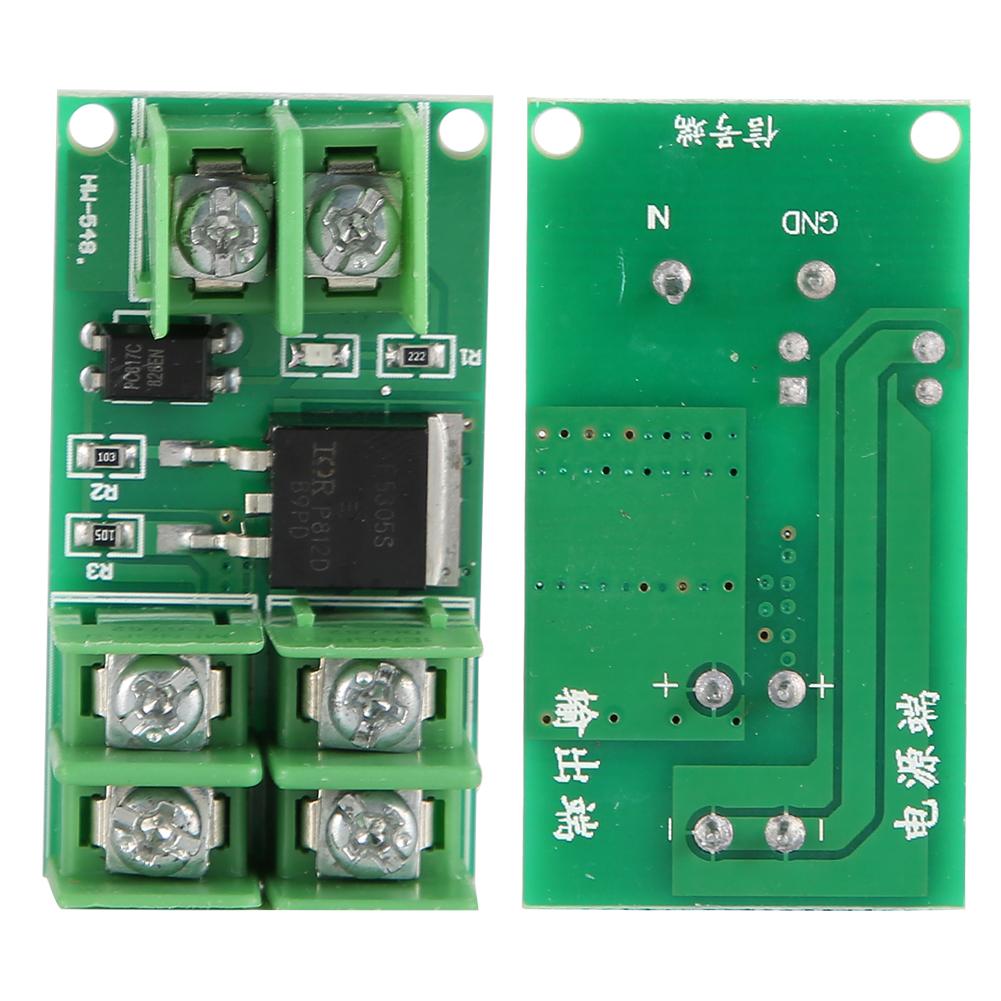

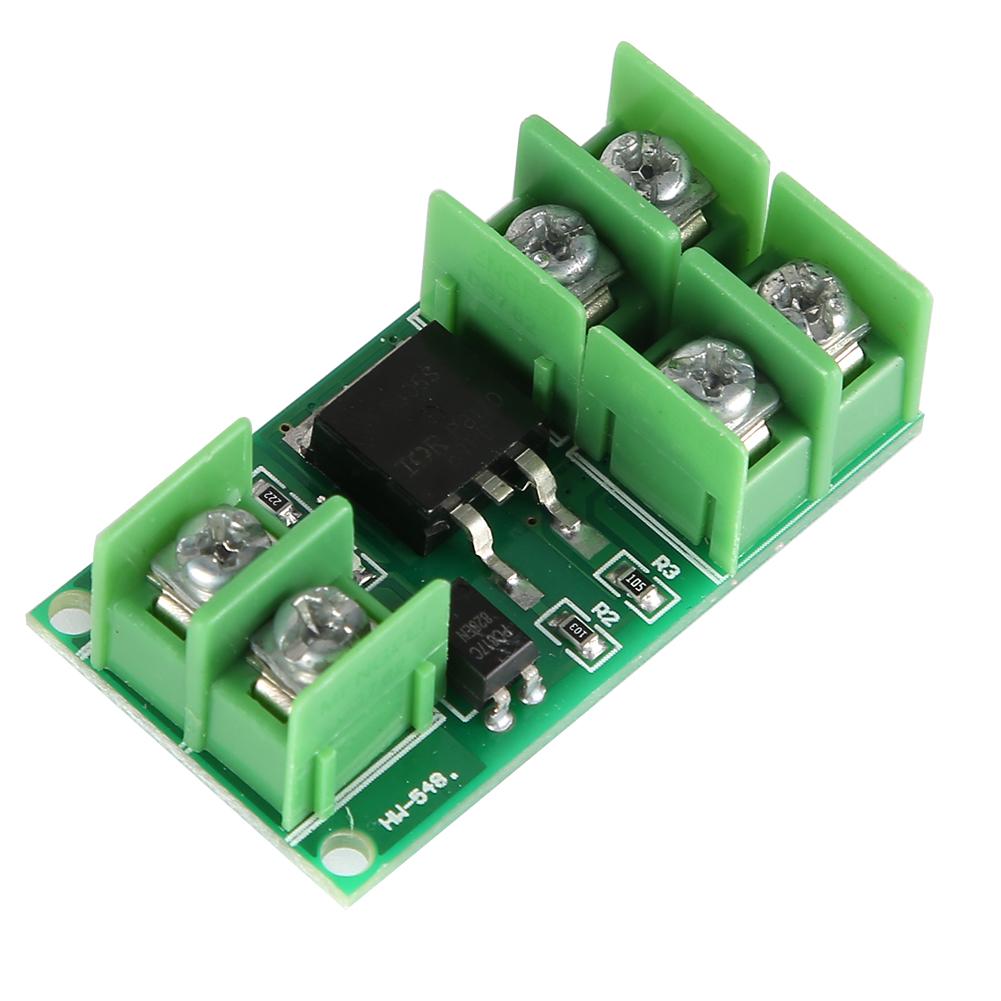

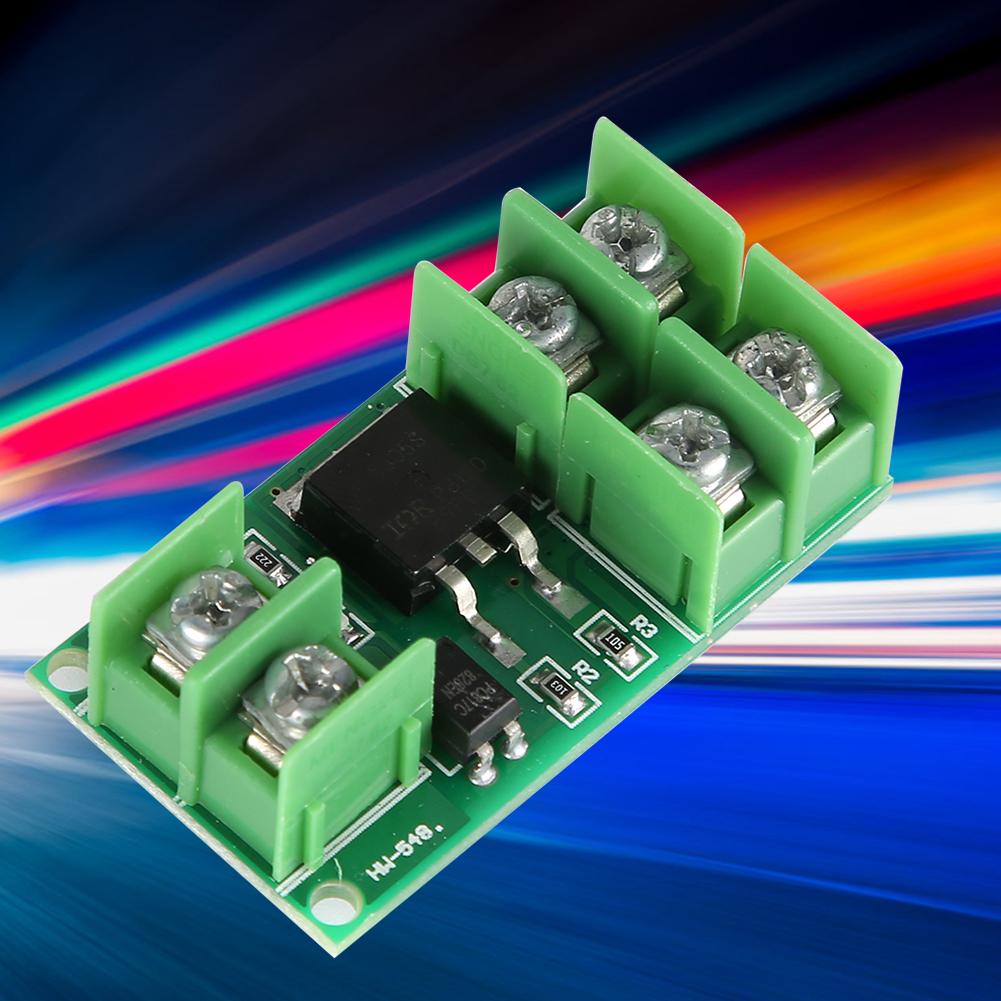

MOS Tube Module PMOS Electronic Switch Board with 3V 5V 12V 24V 36V Input Signal Voltage

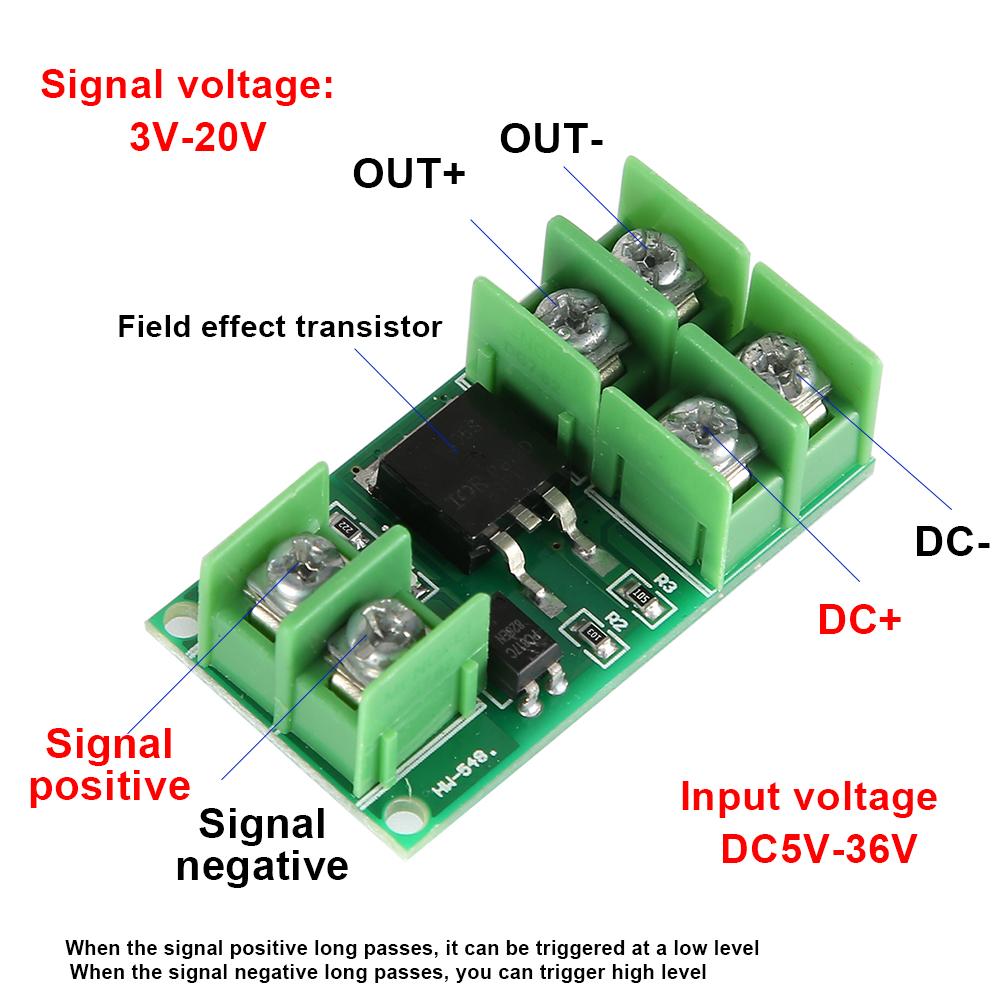

Feature: 1. As a kind of FET module, the input and output of this board are completely isolated. 2. Signal trigger terminal is with digital electrical level high and low electrical level. IO port, PLC interface and DC power supply can be connected to a single chip microcomputer. 3. Output can control high-power equipment, motor, bulb, LED strip, DC motor, micro pump and solenoid valve. 4. Practically, high-power devices can be controlled with small voltages and small currents. 5. Using the original F5305S power FET, you can input PWM to control motor speed and lamp brightness. Specification: Item Type: Switch control board FET Module: The input is completely isolated from the output. Signal Trigger Terminal: Digital high and low level. (It can be connected to the microcontroller IO port, PLC interface, DC power supply, etc.) Input Signal Voltage: 3V~24V; Current: About 5ma. Output Controlled Voltage: 5V~36V, Current: less than 5A. (If it is larger than 5A, heat sink should be added and the maximum can not exceed 20A.)

Package List: 1 x Switch Control Module
