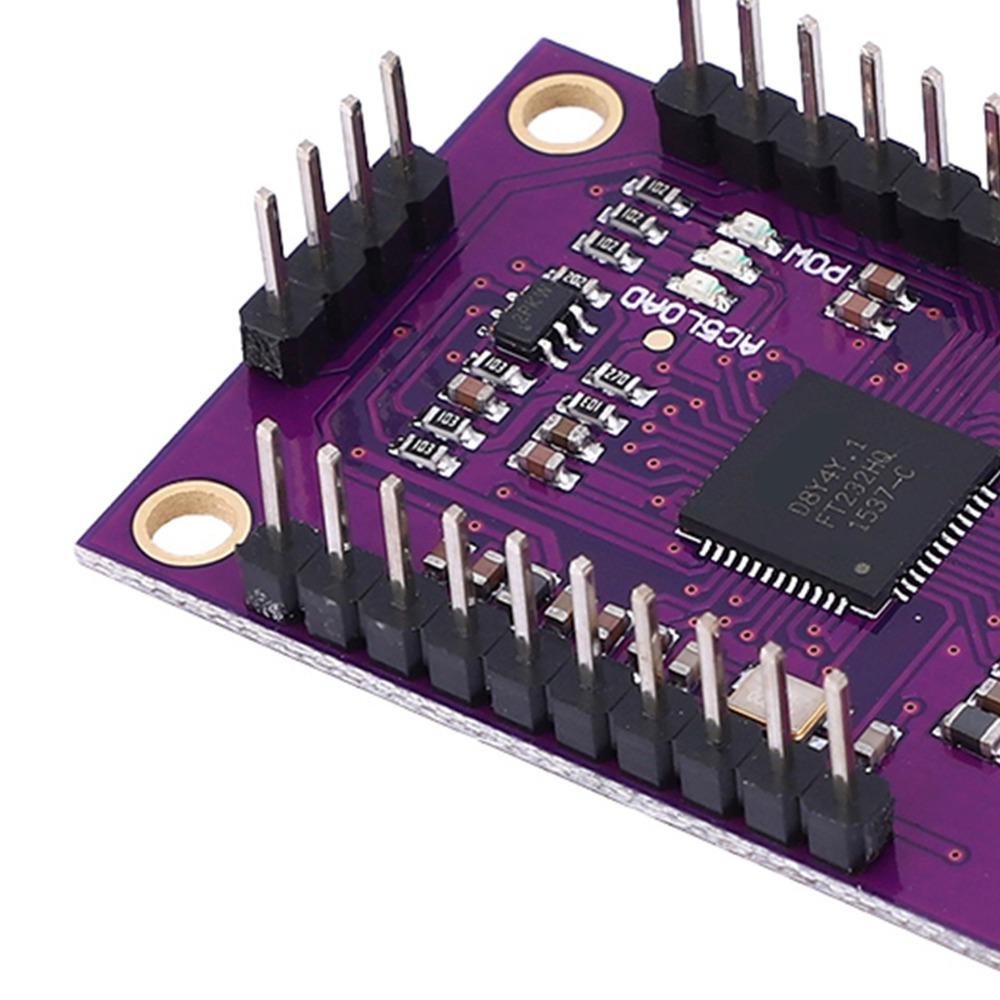

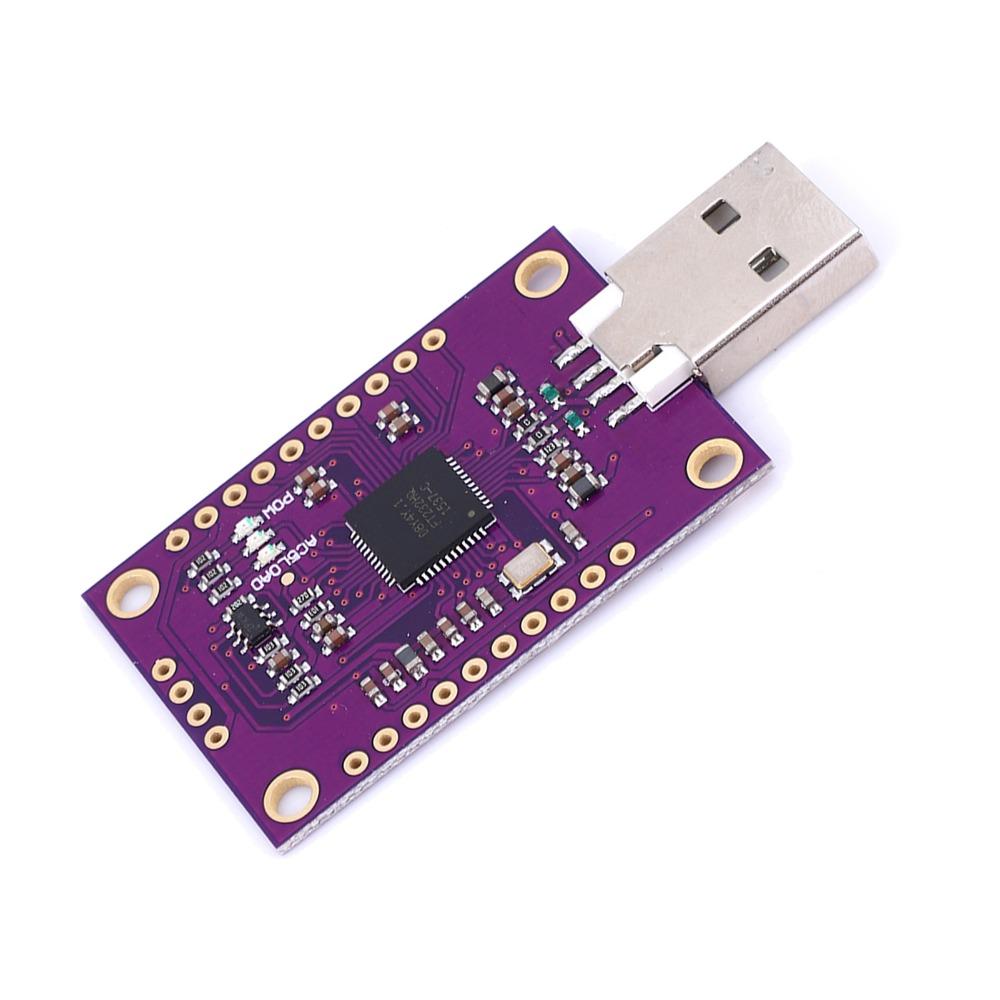

High Speed USB To Serial Port Module USB To JTAG Module Device Data Transmission

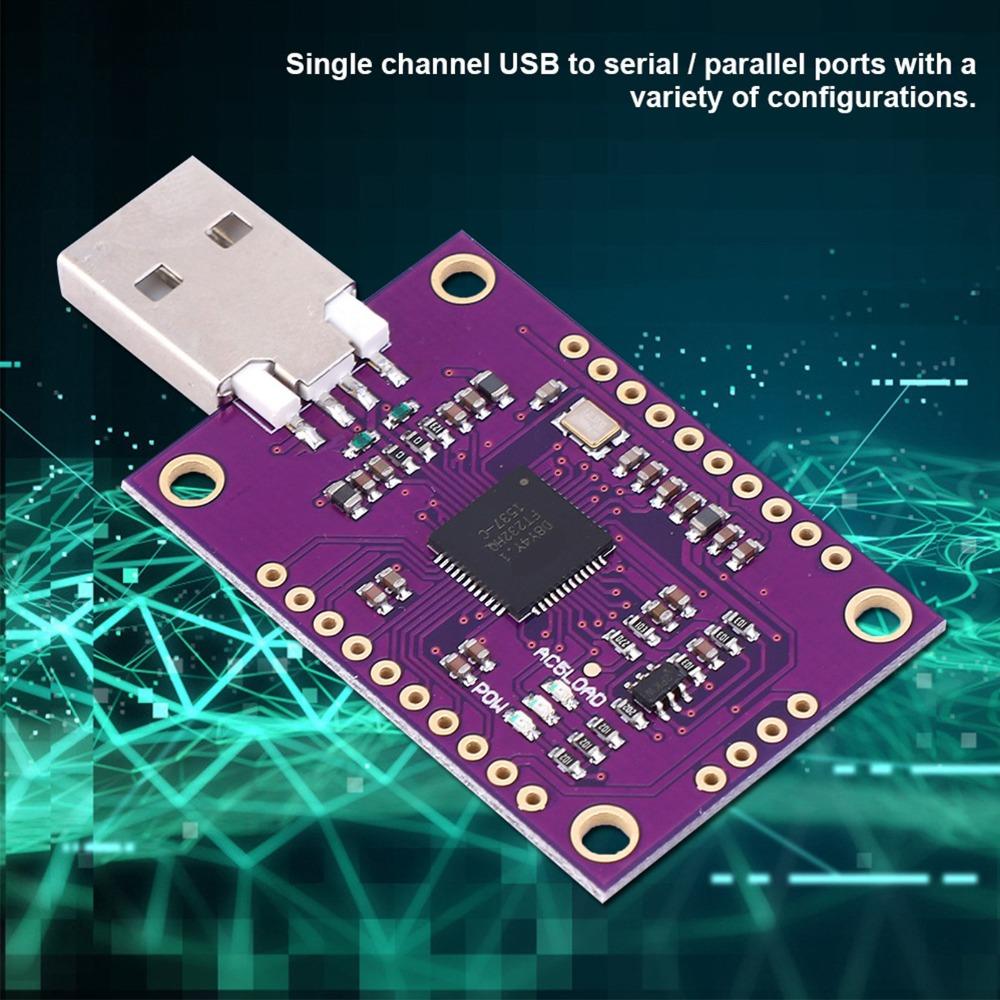

Label:Yes Whole USB protocol handled on the chip, no USB specific firmware programming required. Multi-protocol synchronous serial engine (MPSSE) to simplify synchronous serial protocol (USB to JTAG, I2C, SPI (MASTER) or bit-bang) design. UART data transfer rate up to 12Mbaud (RS232 data rate is limited by external level shifter). USB 2.0 high-speed (480Mbits/Second) and full speed (12Mbits/Second) compatible. Single channel USB to serial / parallel ports with a variety of configurations.

Feature: USB to synchronous 245 parallel FIFO mode transfer up to 40 megabytes/second. USB to asynchronous 245 fifo mode data transfer rate up to 8 megabytes per second. Support for special half-duplex FT1248 interface with configurable width, bidirectional data bus (1, 2, 4 or 8 bit wide). CPU - style FIFO interface mode simplifies CPU interface design.1 Fast serial interface option.1 FTDI's royalty-exempt Virtual Com Port (VCP) and Direct (D2XX) drivers obviate the requirement for USB driver development in most cases.1 Adjustable receive buffer timeout.

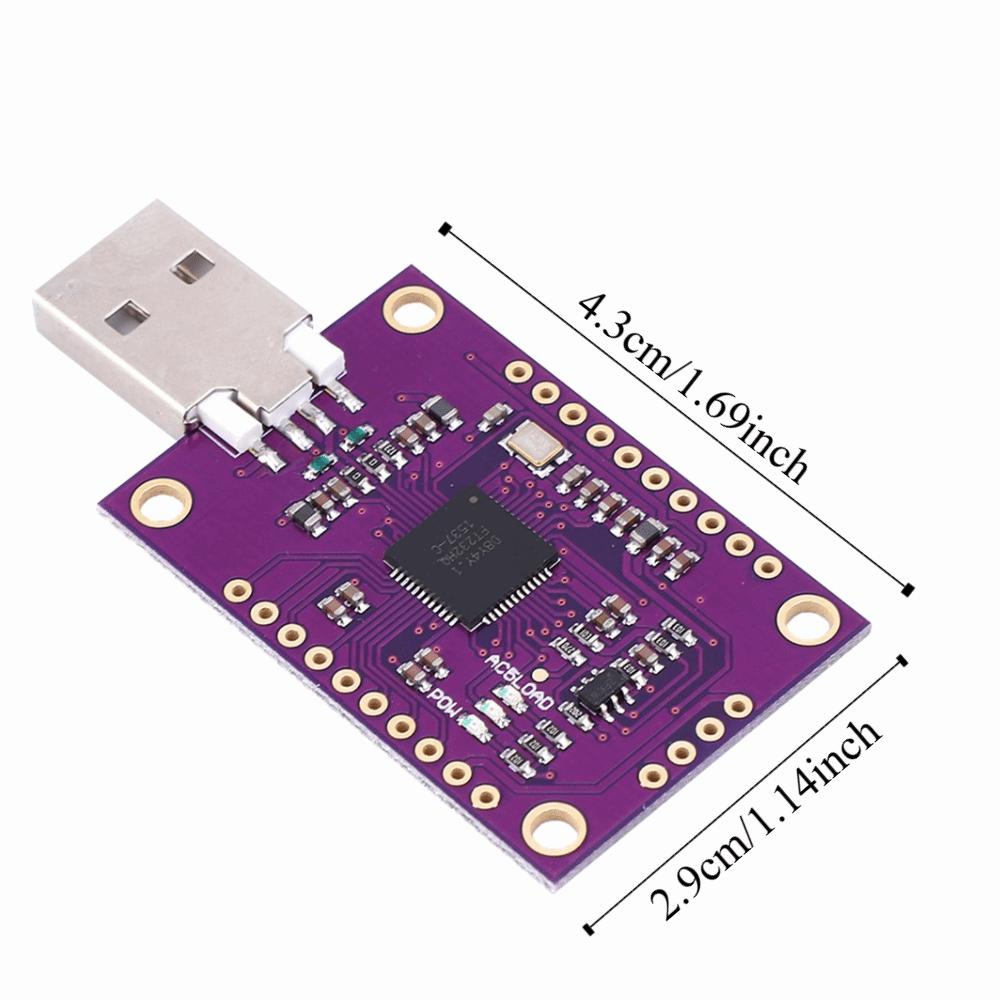

Specification Item Type: USB to JTAG UART/FIFO SPI/I2C Module Module Size: 43*29mm(1.69*1.14in) Color: Purple

Typical Applications Single chip USB to UART (RS232, RS422 or RS485) USB to FIFO USB to FT1248 USB to JTAG USB to SPI USB to I2C USB to Bit-Bang USB to Fast Serial Interface USB to CPU target interface (as memory)

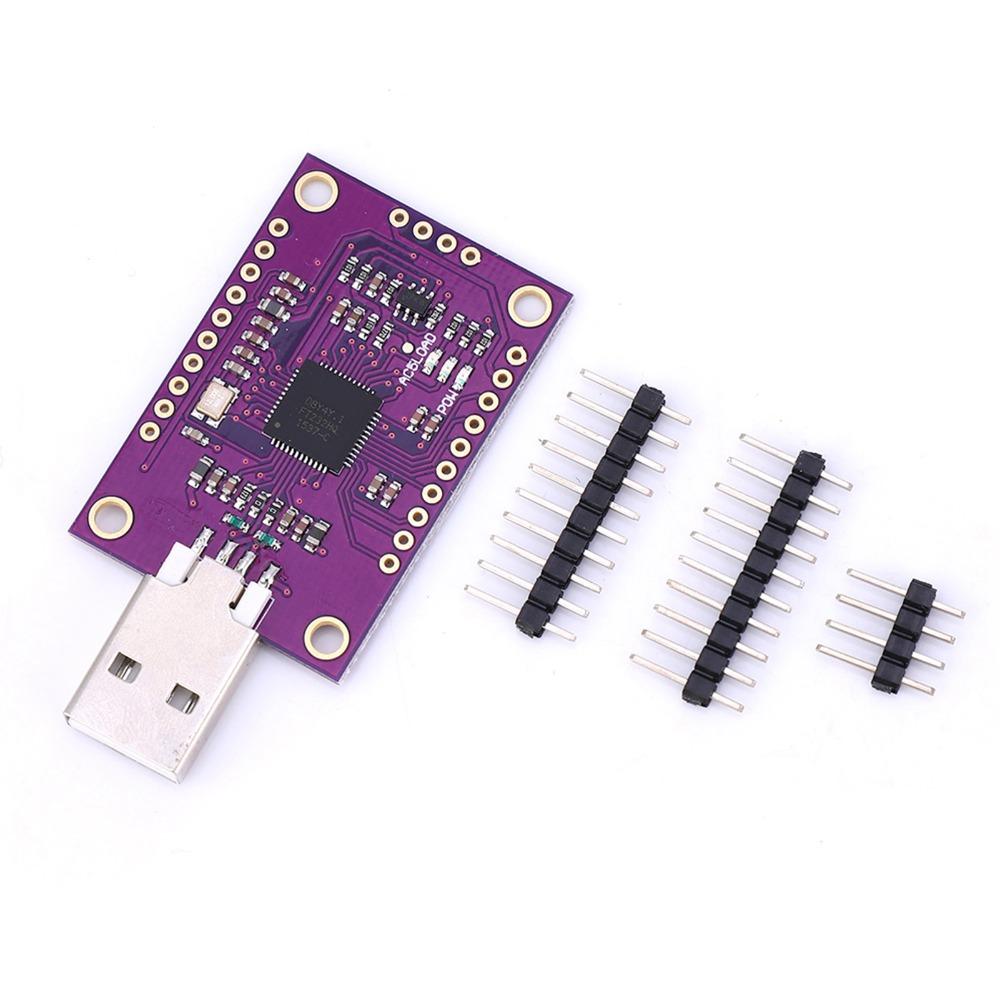

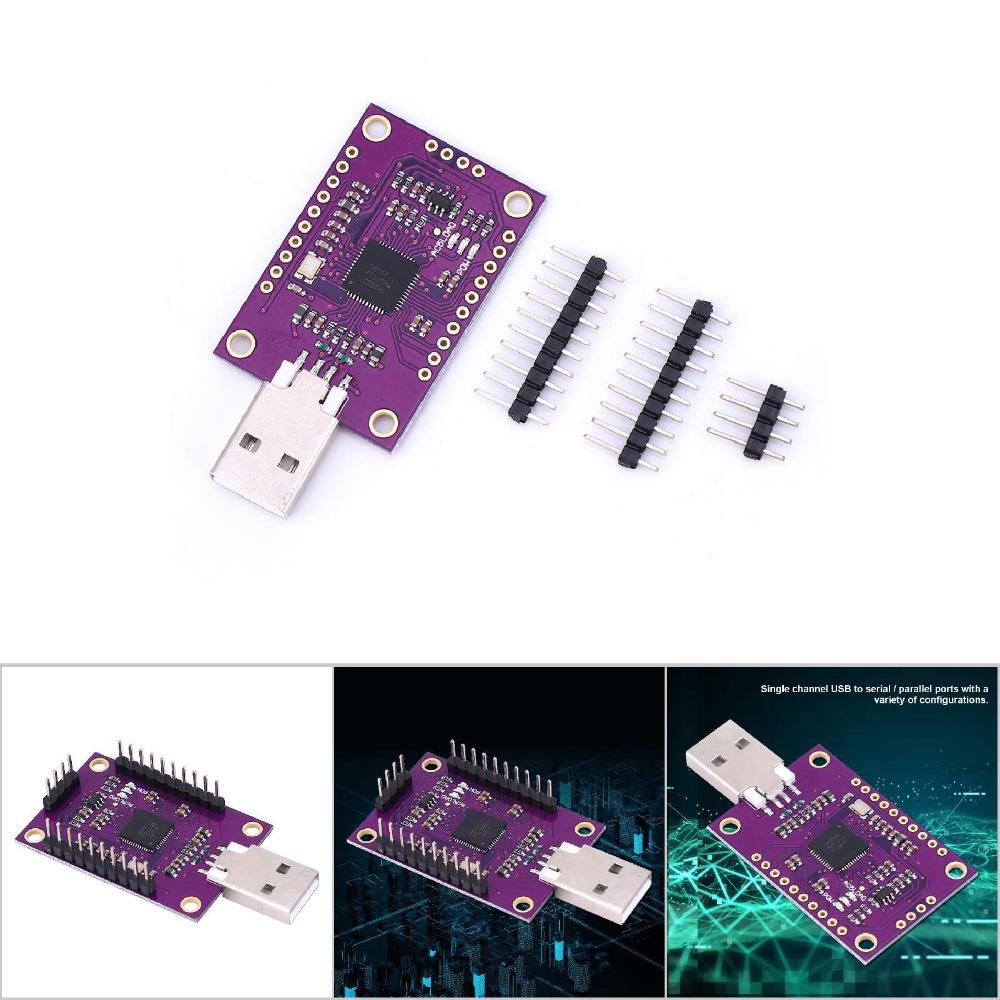

Package List 1 x Module 3 x Pin Header
